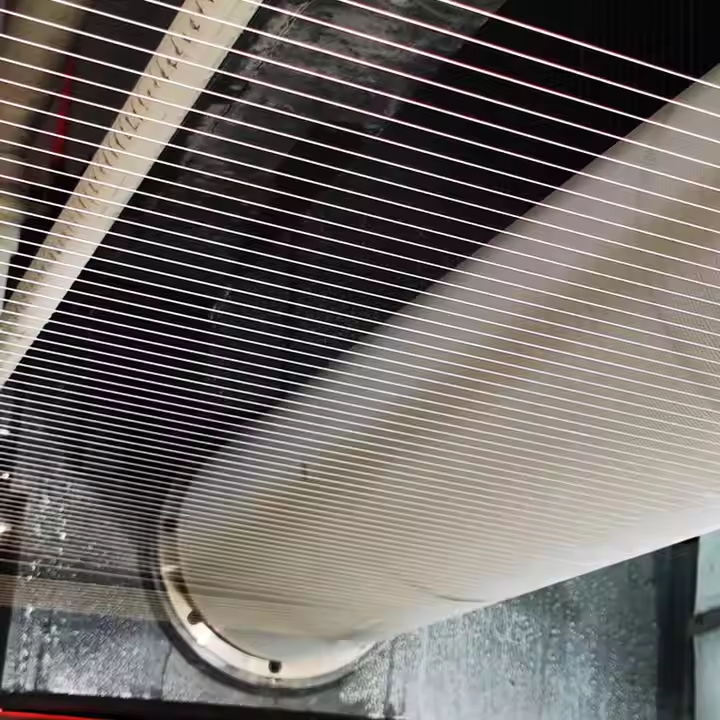

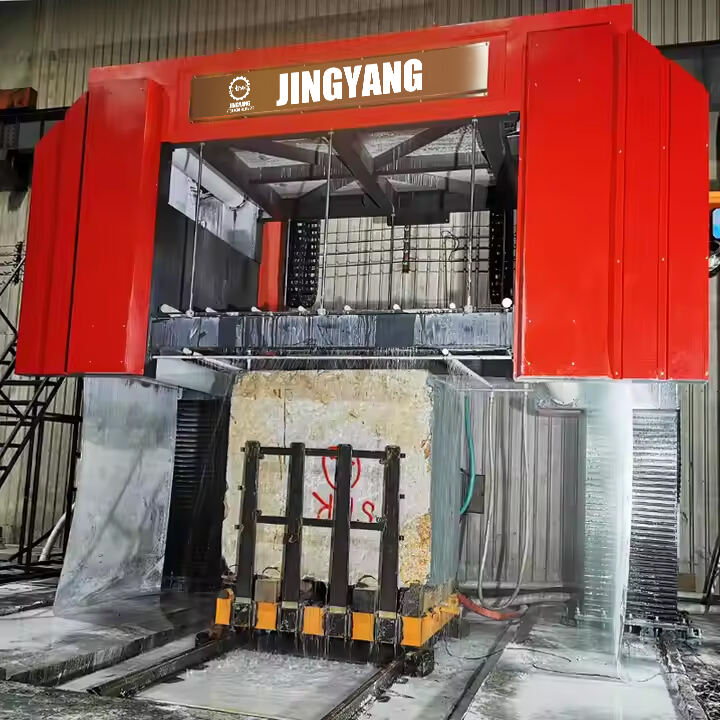

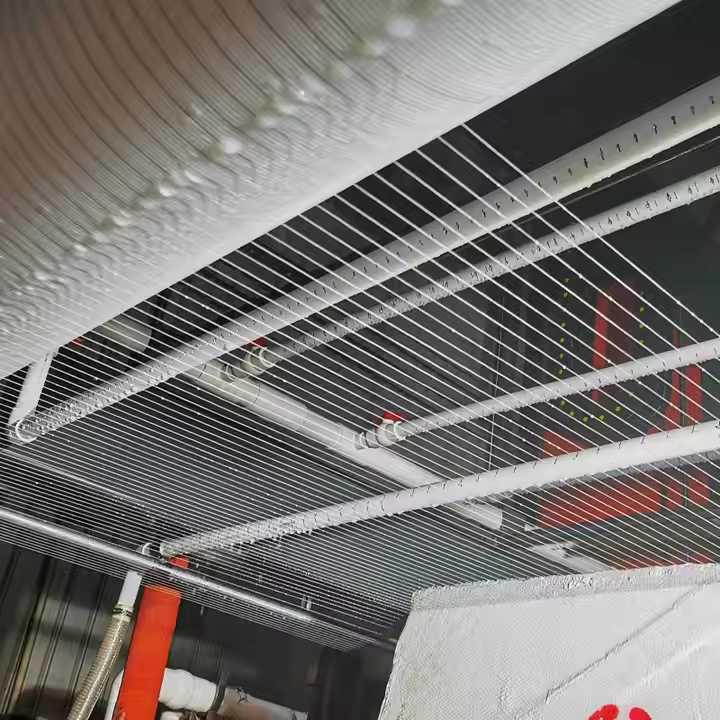

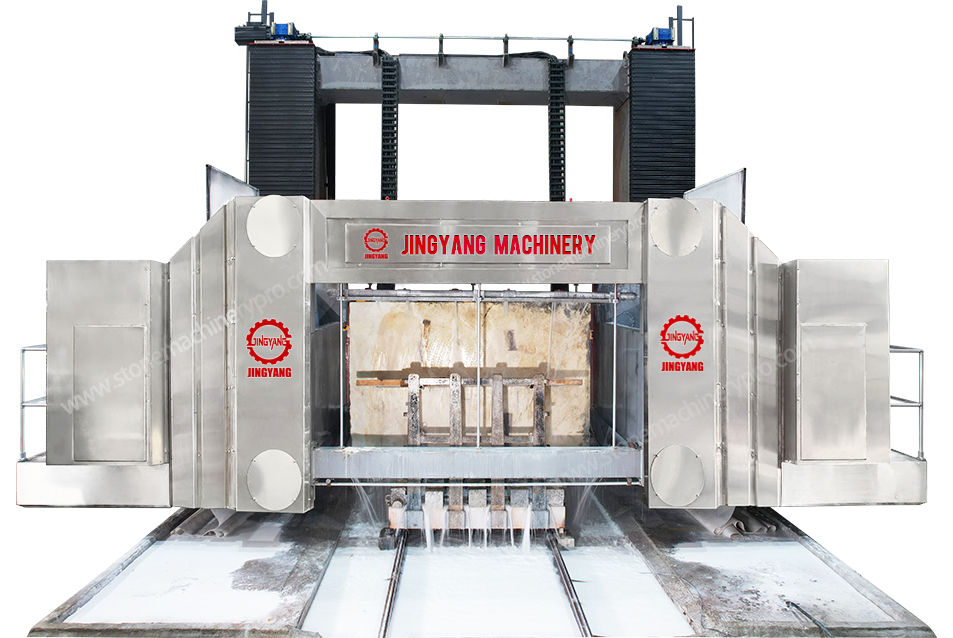

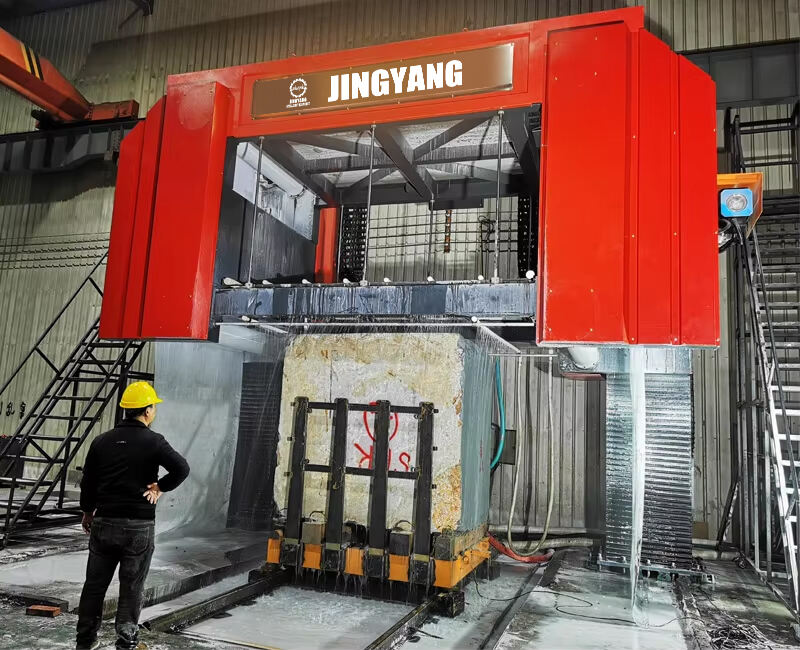

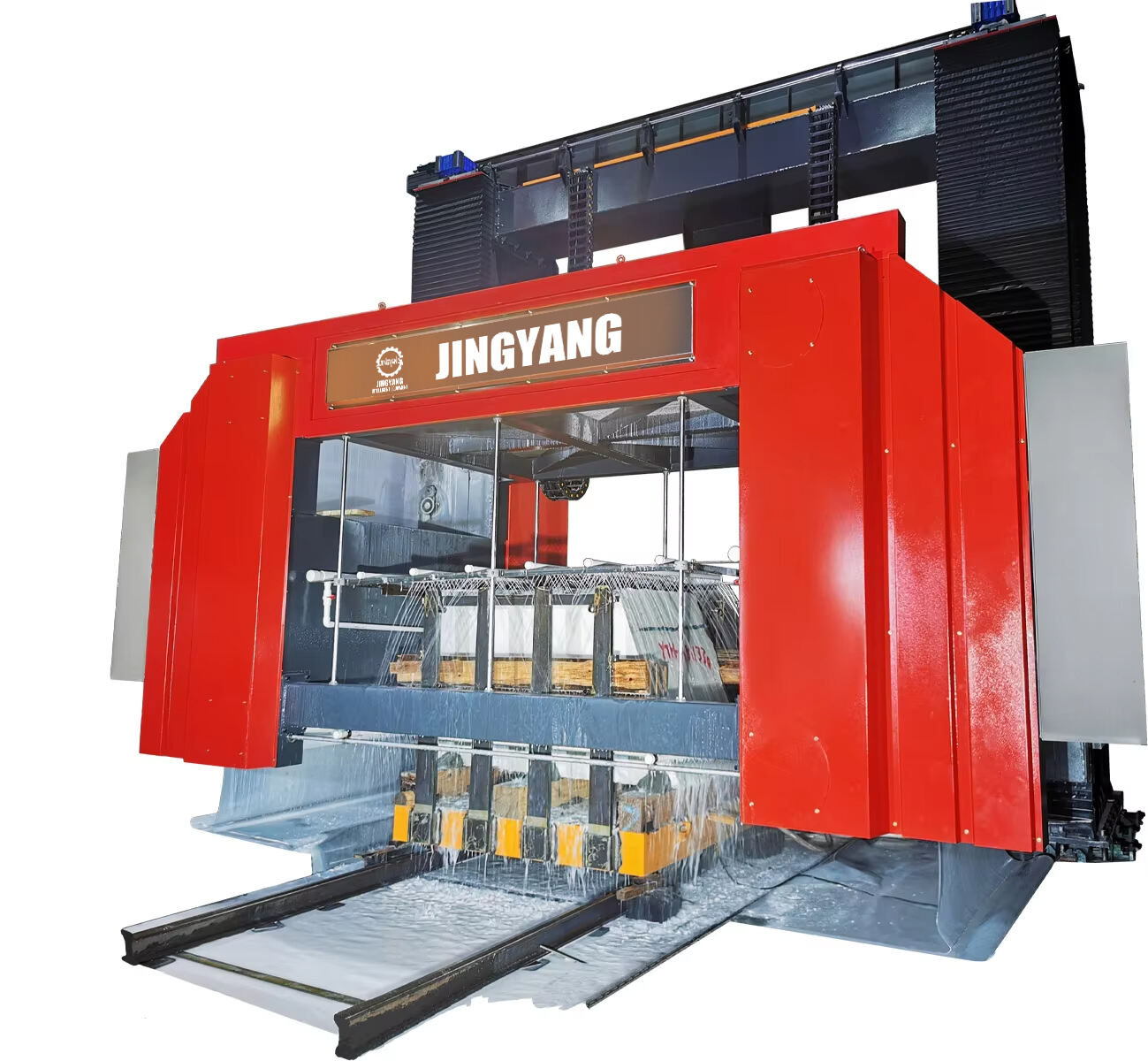

HLMW-100/150 Super Thin Multi Wire Saw is an advanced multi wire saw that has been advanced to stone cutting to revolutionize block cutting processes with ultra-fine precision and efficiency. Developed for the purpose of processing ultra-thin stone slabs out of granite, marble, quartzite, and engineered stone, this machine uses diamond wire technology with a diameter as low as 0.3–0.8 mm. Its cutting process ensures slab yield of up to 98% thus minimizing wastage of materials and maximizing output by block.
Equipped with upgraded tension control mechanisms and a patented wire winding system, HLMW-100/150 brings stable, vibration-free operations for providing superior surface finish and limited secondary processing. As compared to the traditional gang saws or older rope saw machines, it can cut 15-20% more slabs from a block and consume 50% less power because of the reduced friction and the cutting force in the process.
Engineered for energy-conserving and eco-friendly stone cutting, this CNC-controlled multi wire saw greatly slashes off the stone dust emission and grinding noise. The outcome is a cleaner, quieter and a more productive stone fabrication process. No matter whether you are making ultra-thin tiles or architectural panels or high grade cladding material, this machine gives you better yield, precision and reliability for modern stone processing facilities.
Super Fine Multi-Wire Saw Machine.

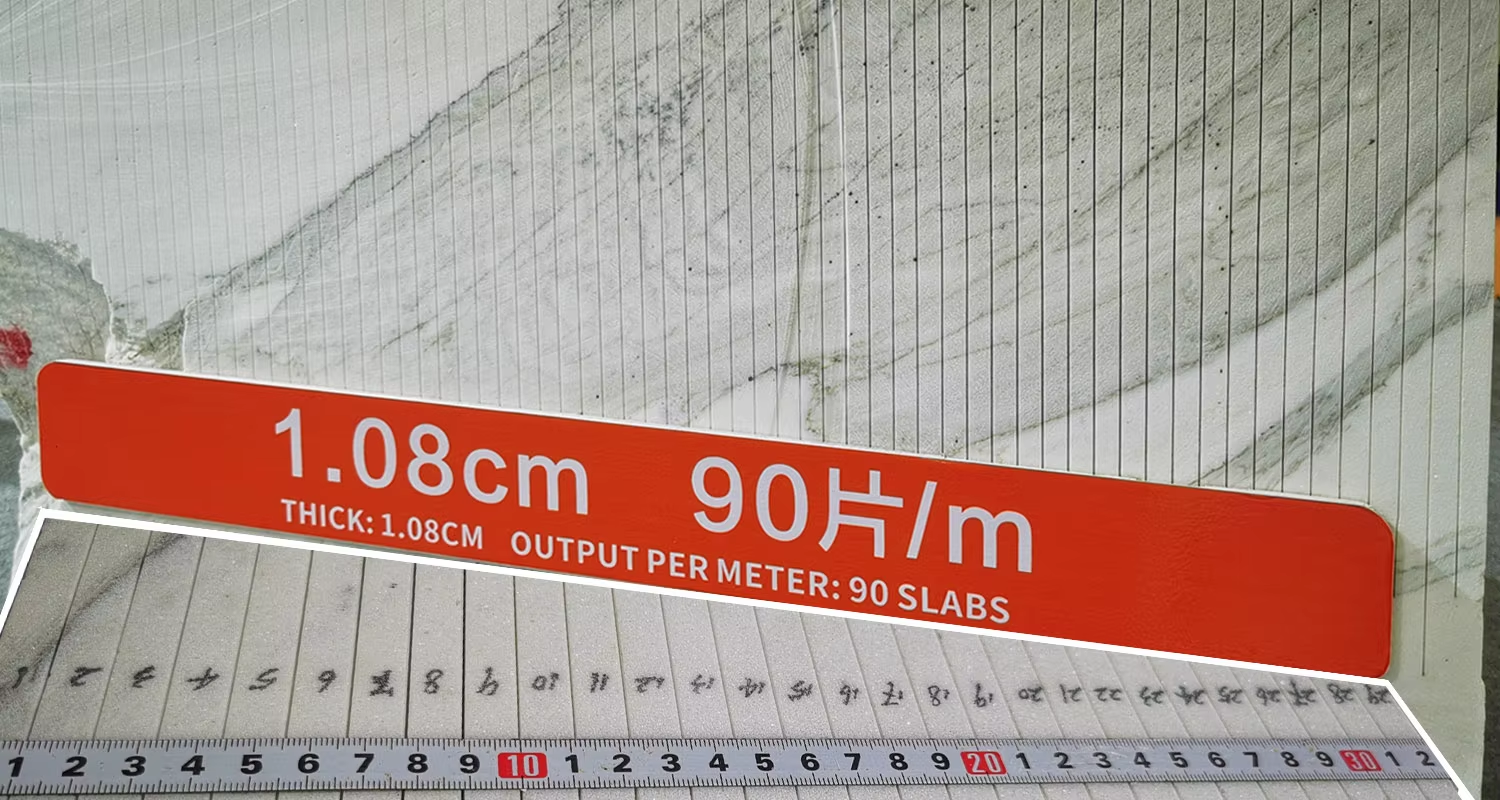

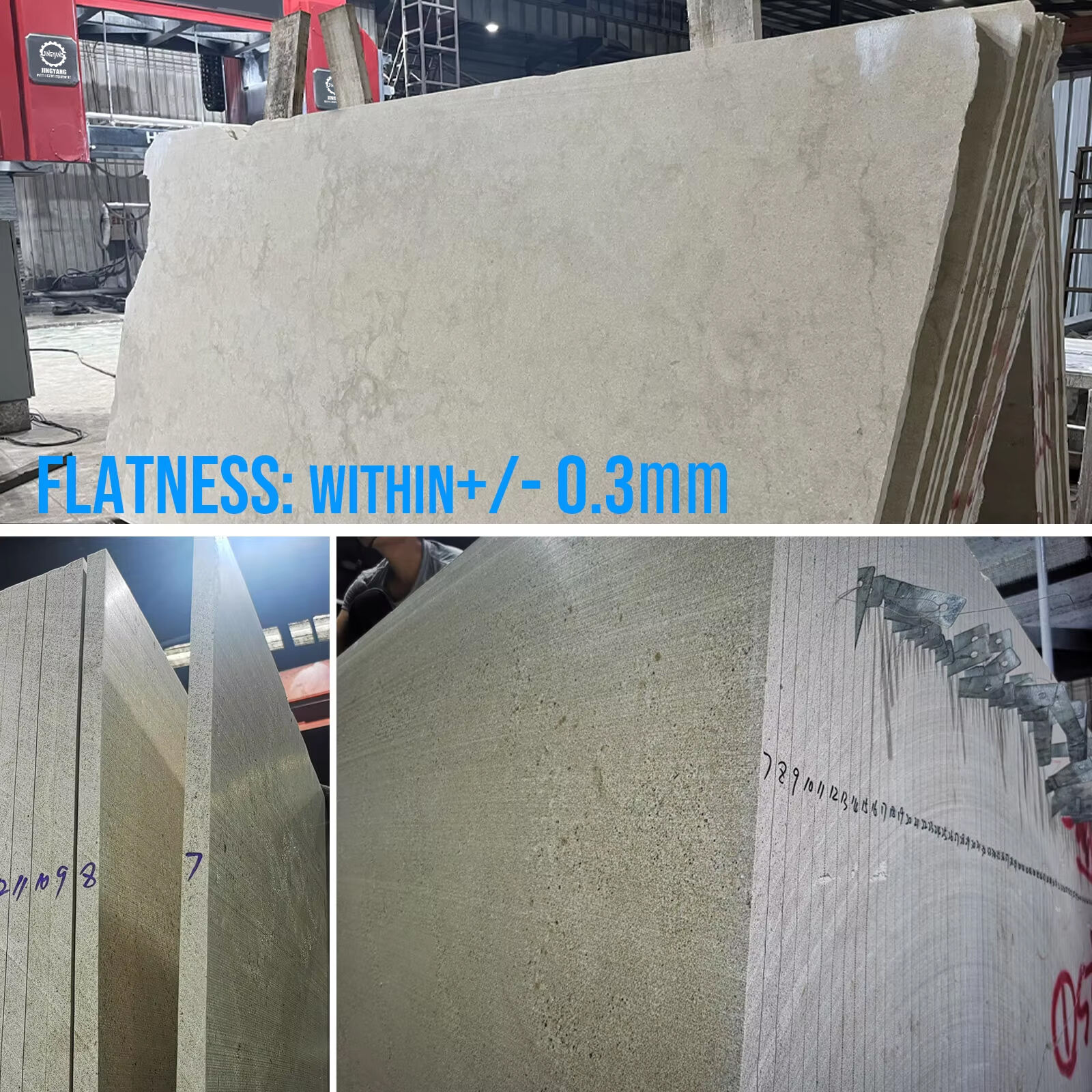

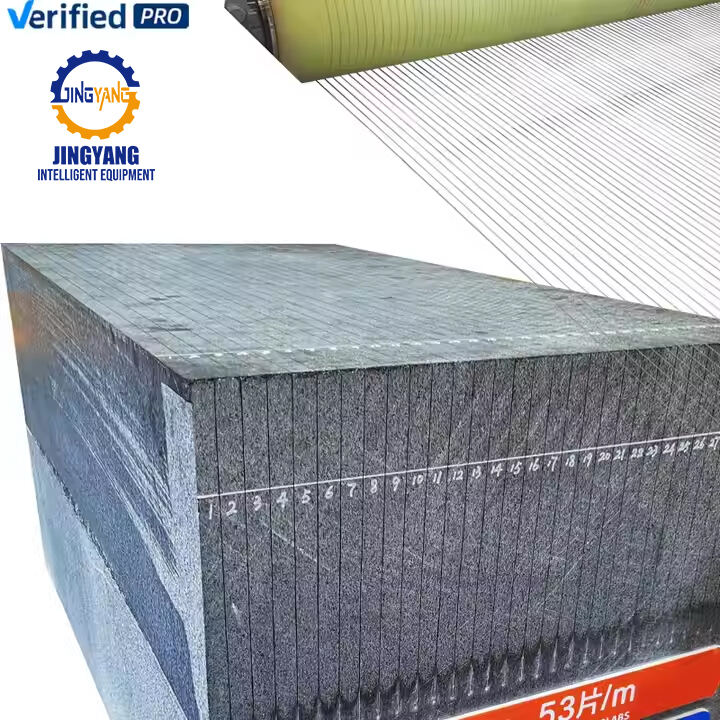

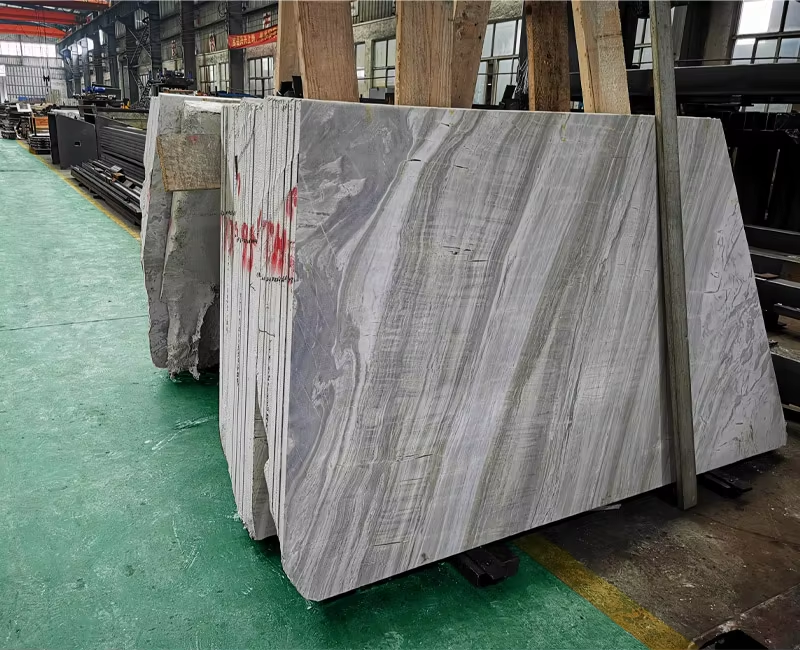

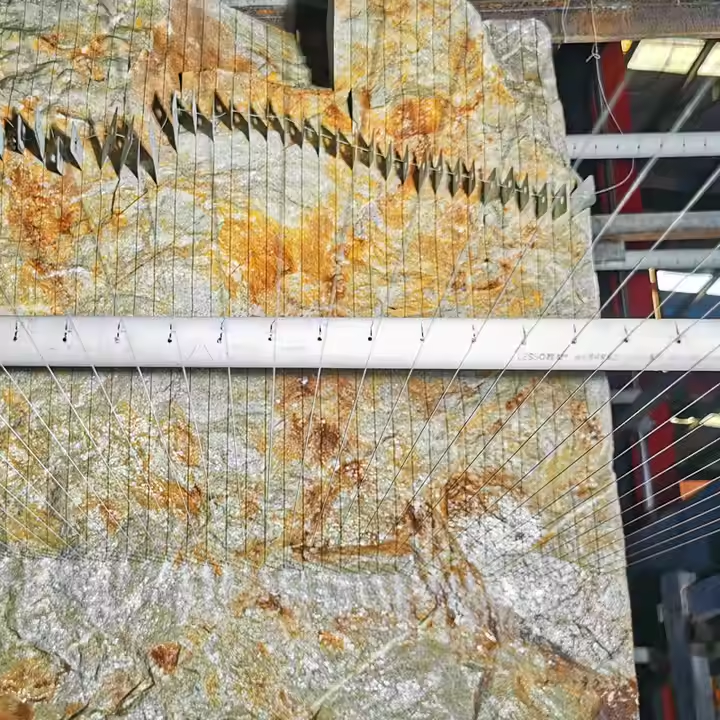

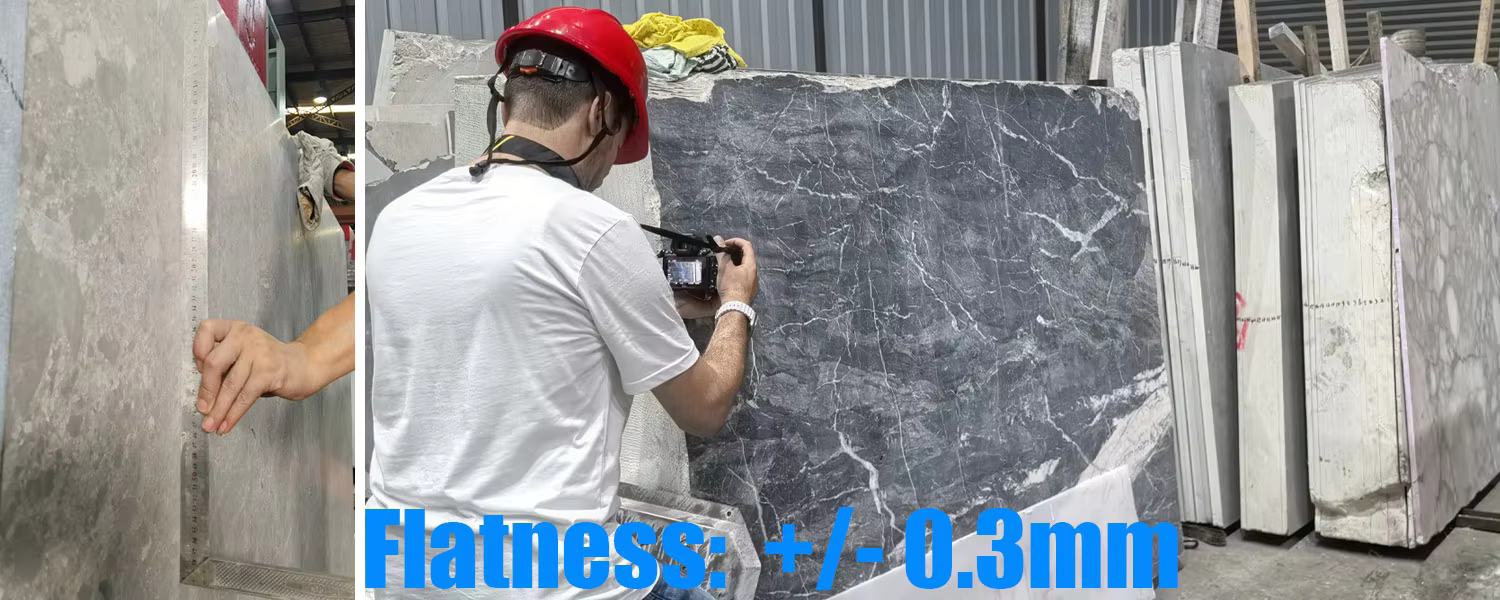

This machine has a yield rate of 98.2% that produces up to 90 slabs/m with a thickness of 1.08 cm. It has 15-20 times the output of traditional gang saws and rope saws with a 90 percent reduction in stone powder emissions. The ultra-thin wire makes it cut steadily, precisely with slab flatness within a 0.3 mm range in order to create smoother surfaces and make maximum use of the available material.
|
Technichal Data for HLMW-100/150 |
||
|
Diameter of diamond wire |
mm |
0.3 - 0.8 |
|

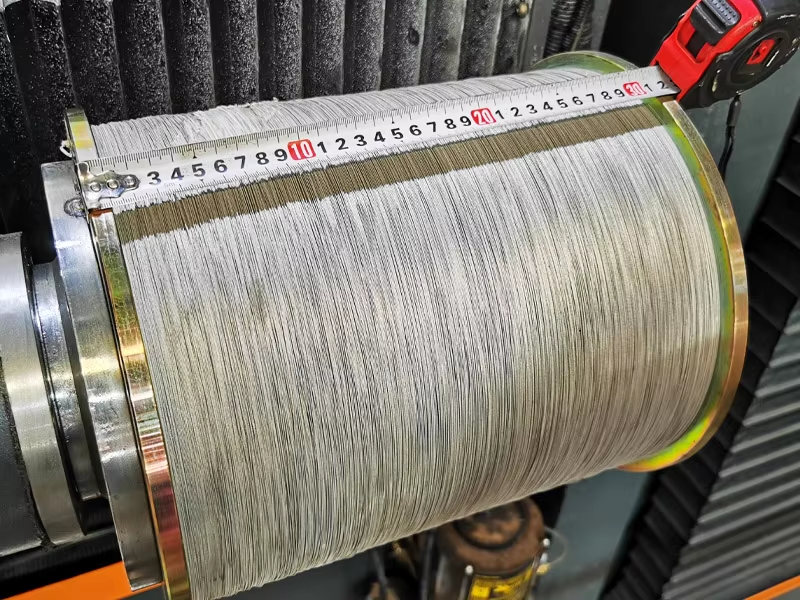

Max. volume of wire stored |
km |
30 / 50 |
|
Operating line speed |
m/s |
25 - 40 |
|
Thickness of slabs cutted |
mm |
5 - 30 |
|
Max. number of cutting pieces |
piece |
100 / 150 |
|
Max. processable size of block |
mm |
3500x2100x2000 |
|
Max. spindle speed |
rpm/min |
3000 |
|
Main motor power |
kw |
60 |
|
Gross power |
kw |
453 |
|
Dimensions (LxWxH) |
mm |
10000x4500x7000 |
|

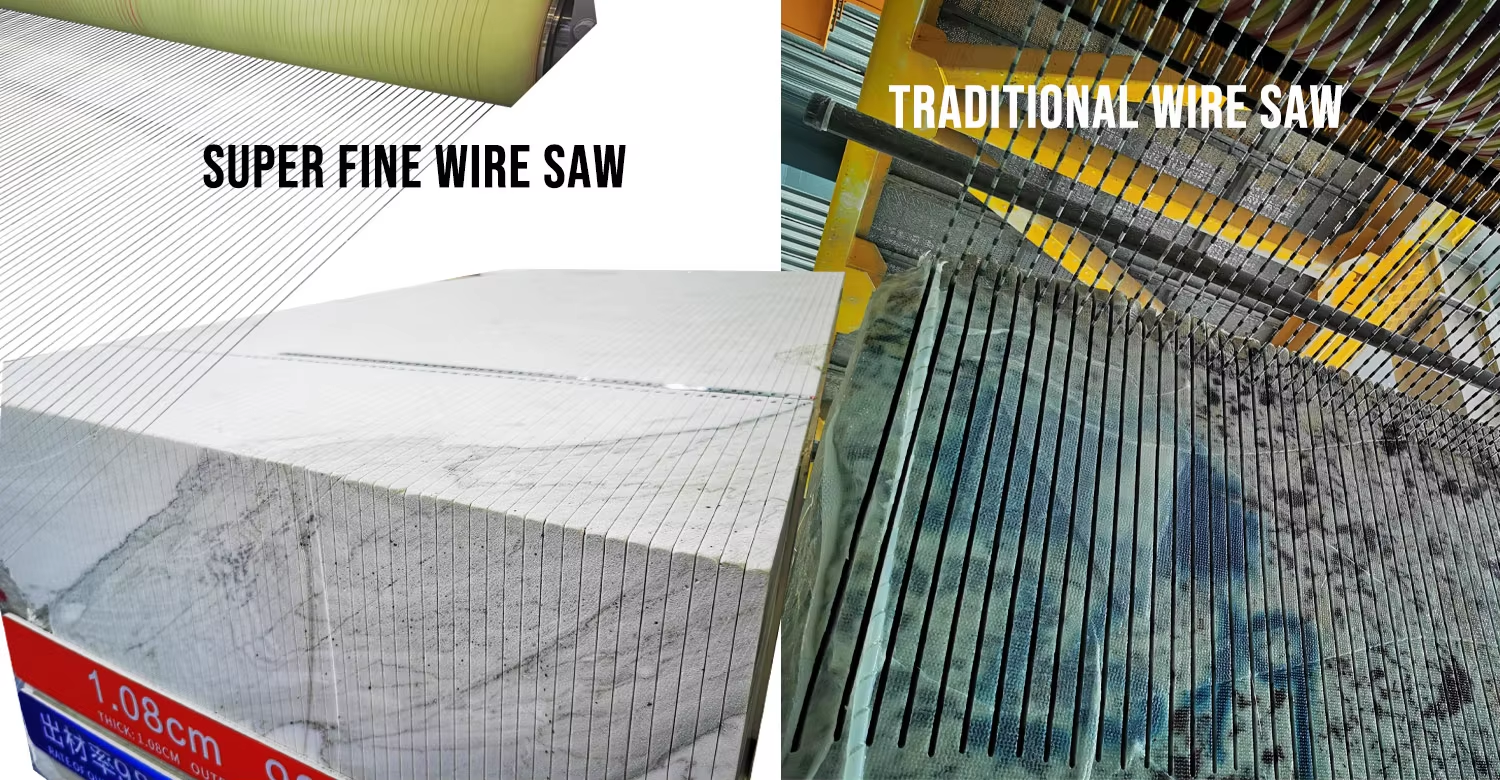

HLMW-100/150 -- Diameter of diamond wire saw |
0.55mm |
|
Traditional -- Diameter of diamond wire/rope saw |
5.3 - 7.3mm |
|
Gang saw -- Thickness of belt saw with segments |
2.2 - 3.5mm |

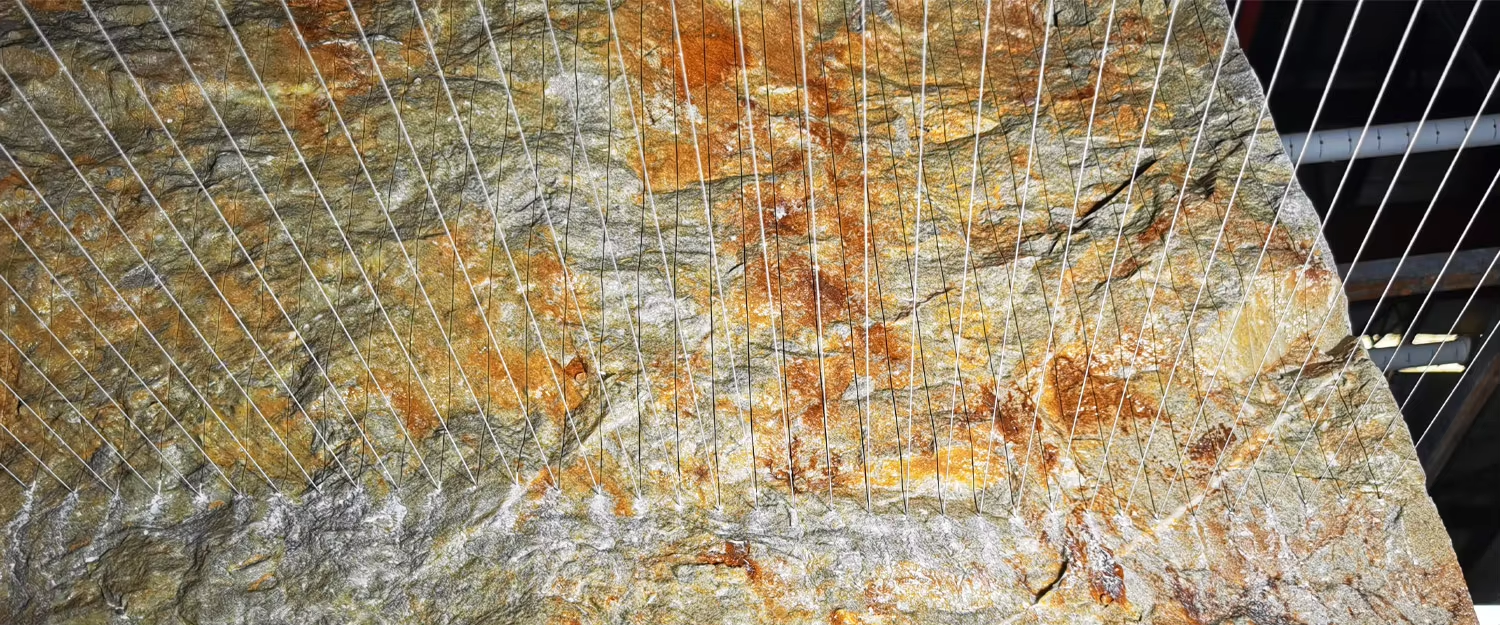

Granite and Marble Block Cutting: Transform the raw stone blocks into high yielding slabs with reduced wastage of materials.
Ultra-Thin Slab Fabrication: Perfect for the manufacture of slabs less than 10mm for lightweight cladding or decorative surfaces.
Quartzite and Engineered Stone Processing: Suitable for natural as well as composite material.
Architectural Panel Manufacturing: Excellent for interior and exterior stone walls, surfaces of furniture, and flooring.

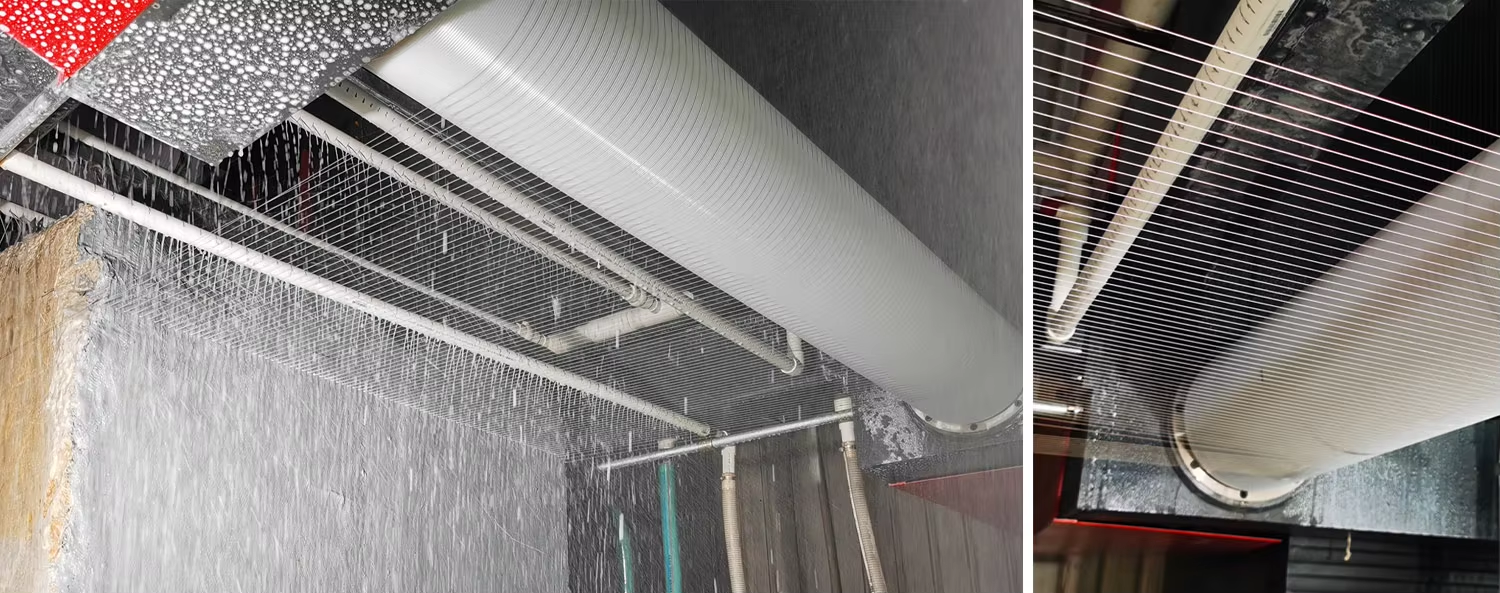

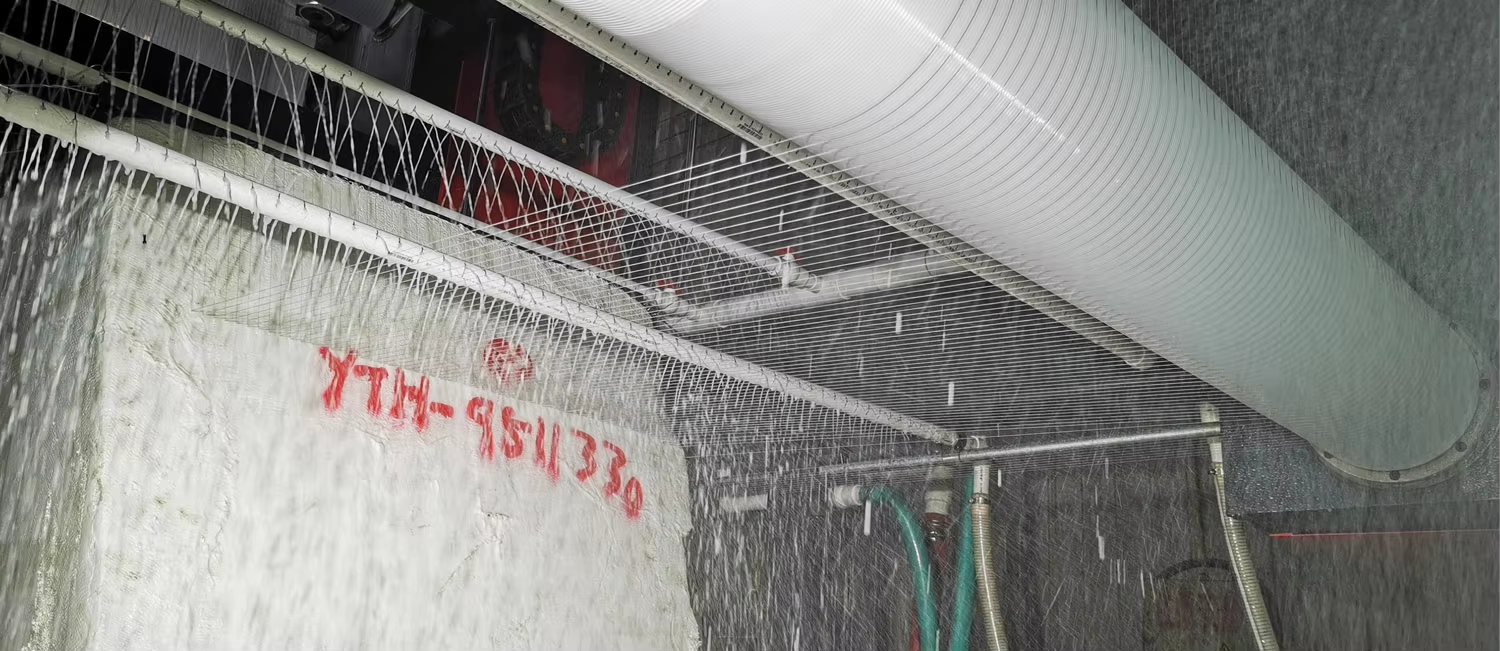

High-Precision Industrial Cutting: For applications where flatness and surface quality is paramount.
Granite and Marble Block Cutting: Transform the raw stone blocks into high yielding slabs with reduced wastage of materials.
Ultra-Thin Slab Fabrication: Perfect for the manufacture of slabs less than 10mm for lightweight cladding or decorative surfaces.
Quartzite and Engineered Stone Processing: Suitable for natural as well as composite material.
Architectural Panel Manufacturing: Excellent for interior and exterior stone walls, surfaces of furniture, and flooring.
High-Precision Industrial Cutting: For applications where flatness and surface quality is paramount.
Q:What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: Are you trader or manufacture?
A: We are a leading manufacture in stone machinery for more than 30 years.
Q: What's the warrenty?
A: 1 year, but the technical support is lifetime.
Q: How can you guarantee the quality?
A: We have a professional quality control team, they will seriously inspect every manufacturing procedure during production. Also we will give every machine a overall check before delivery.
Q: Why should I buy your from you, not others?
A: We have professional R&D team in this industry over 30 years, experienced workers, responable QC team, good quality, competitive prices and excellent survice.
