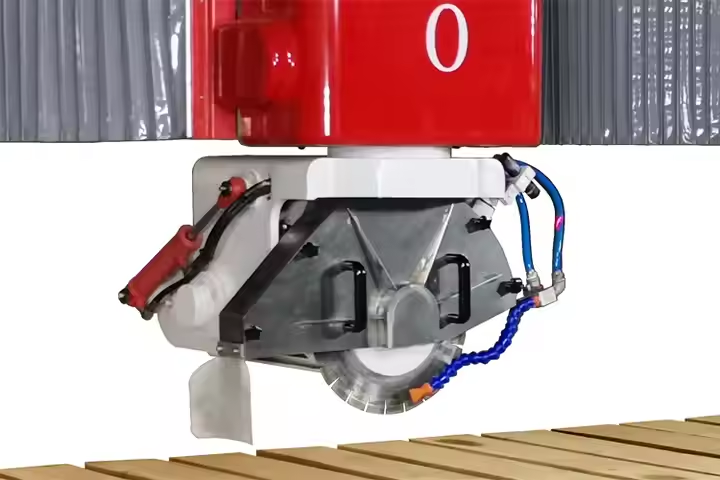

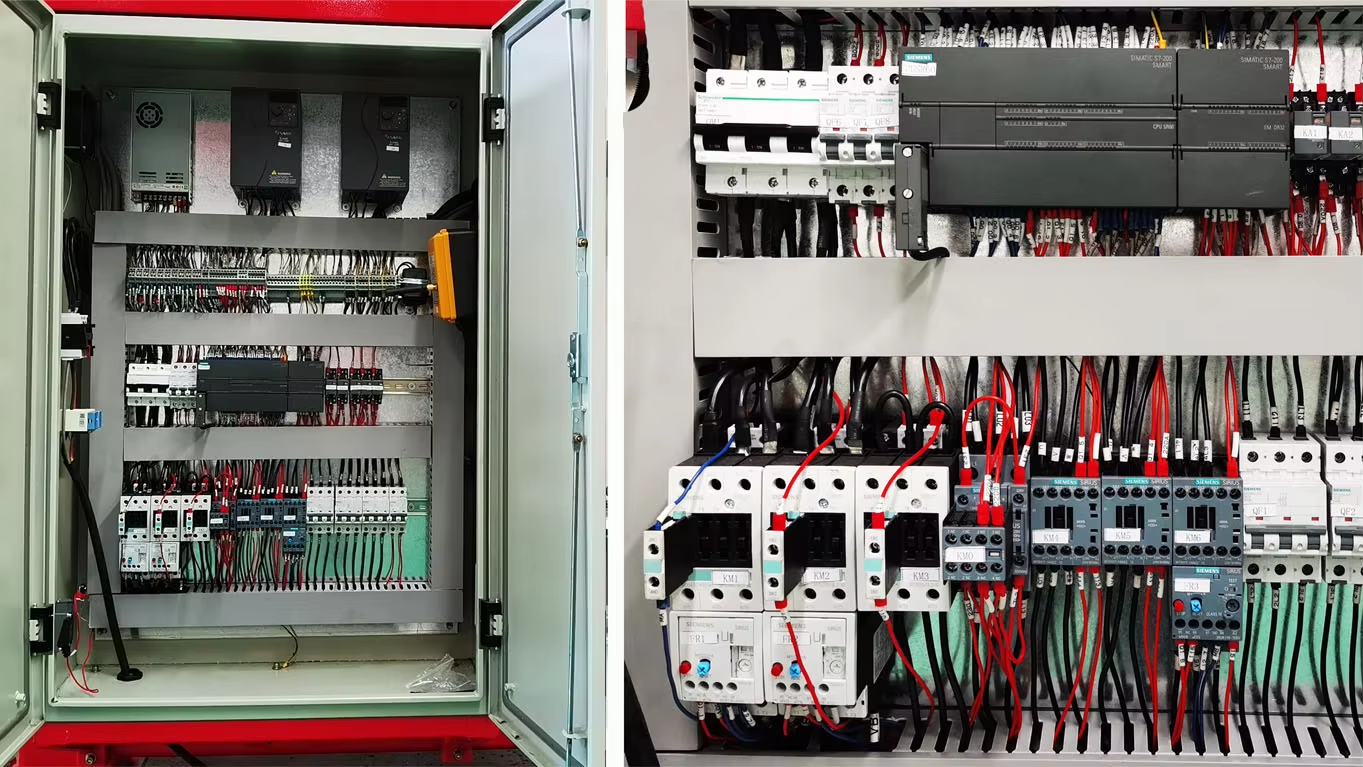

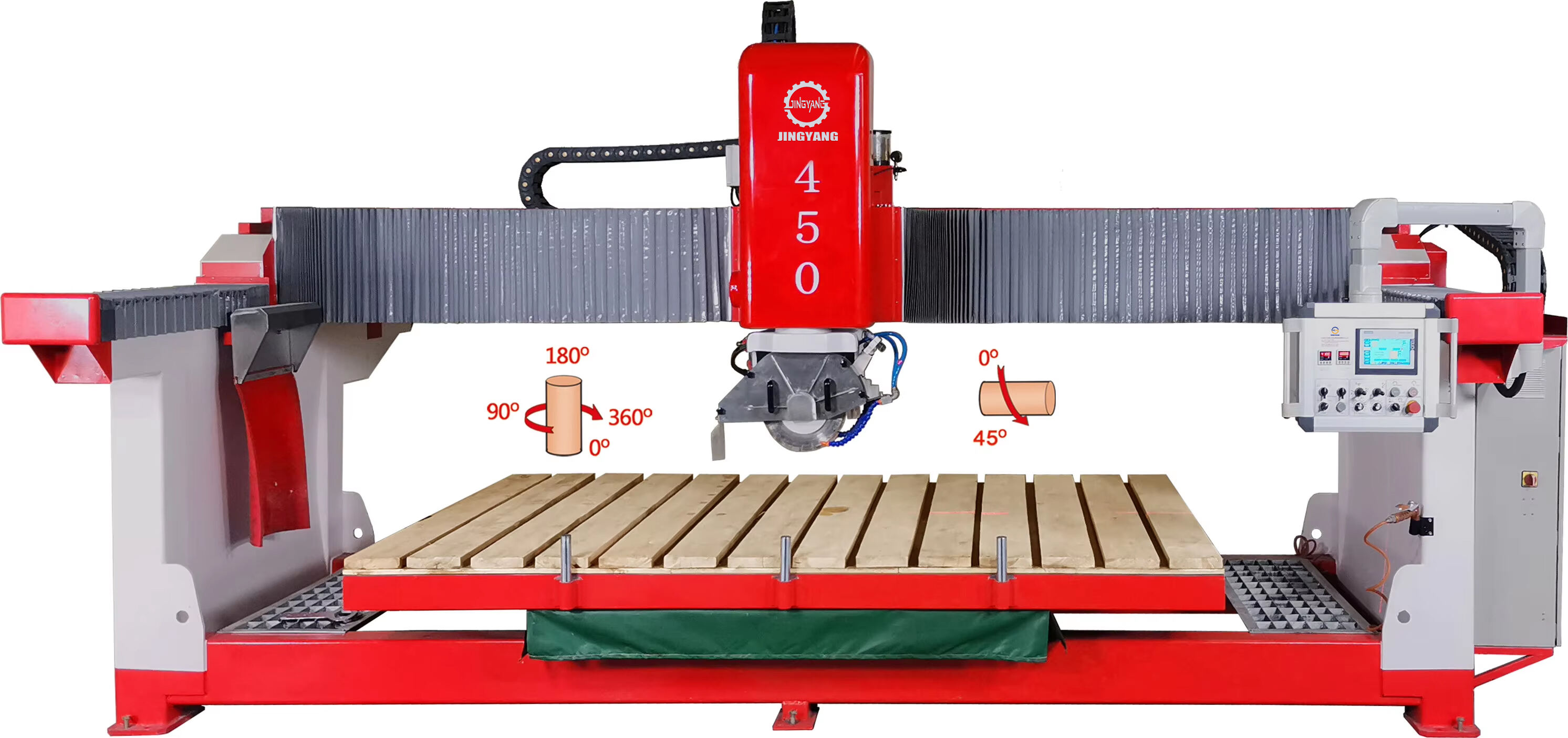

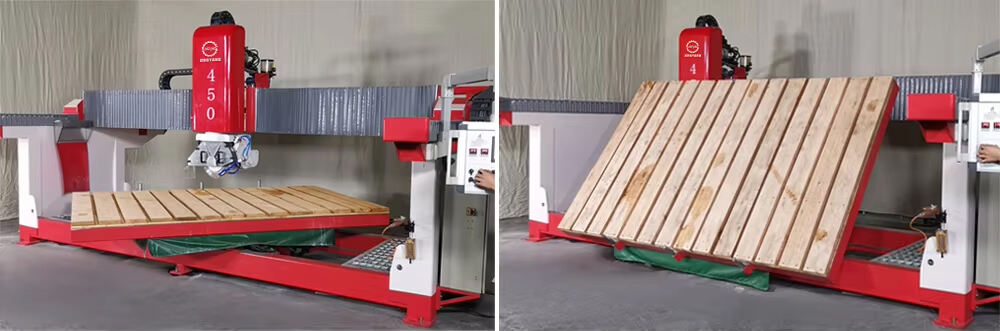

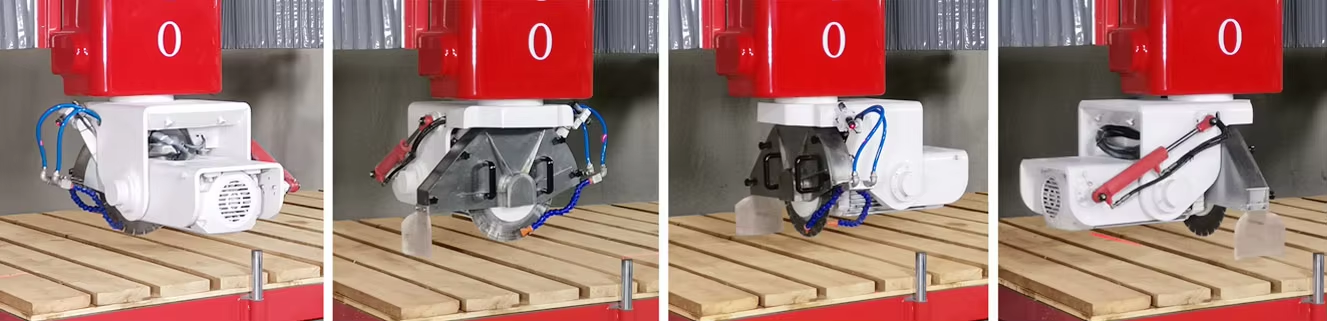

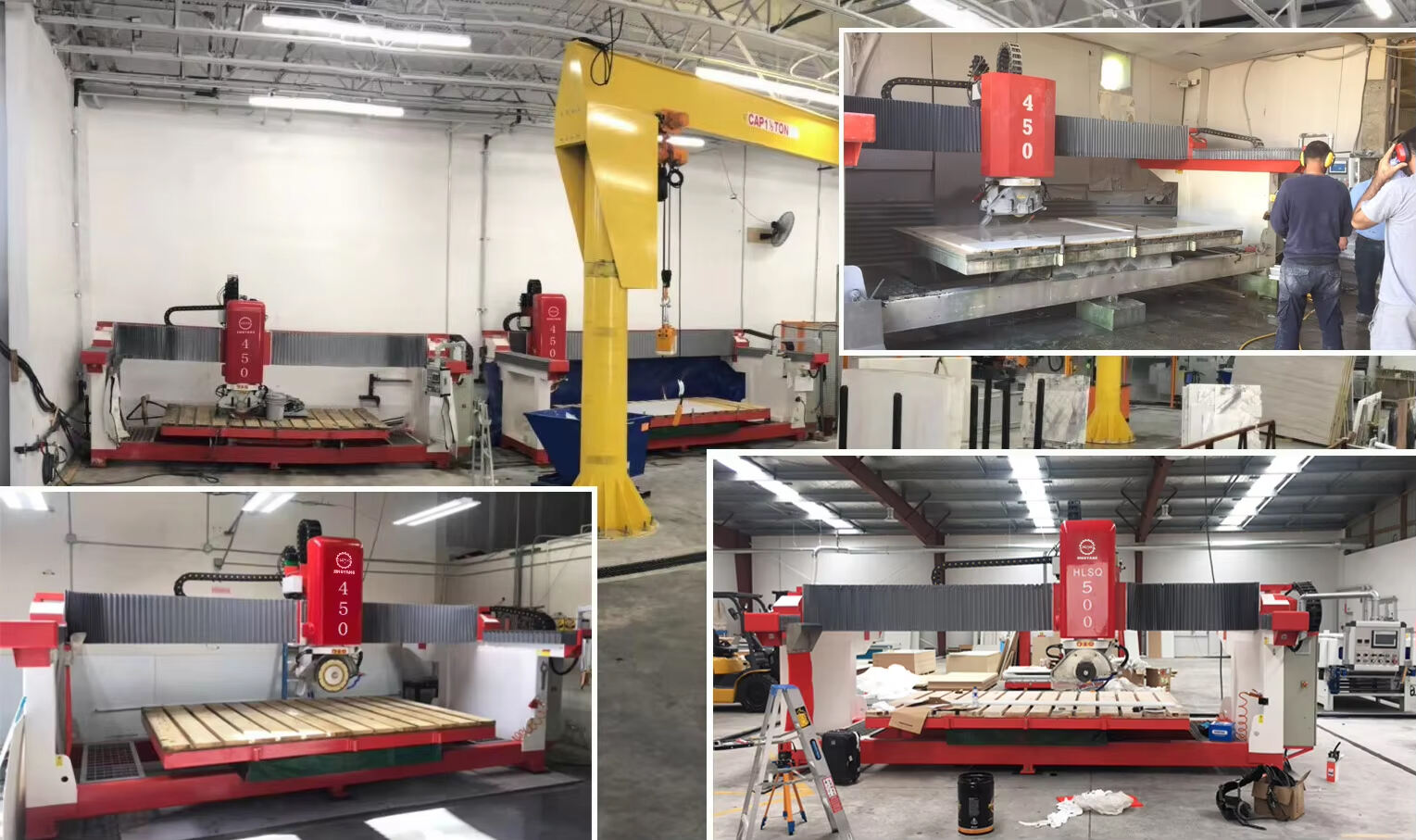

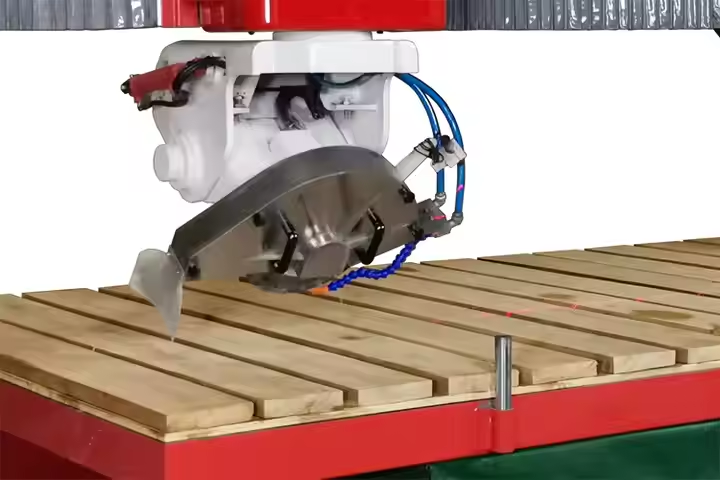

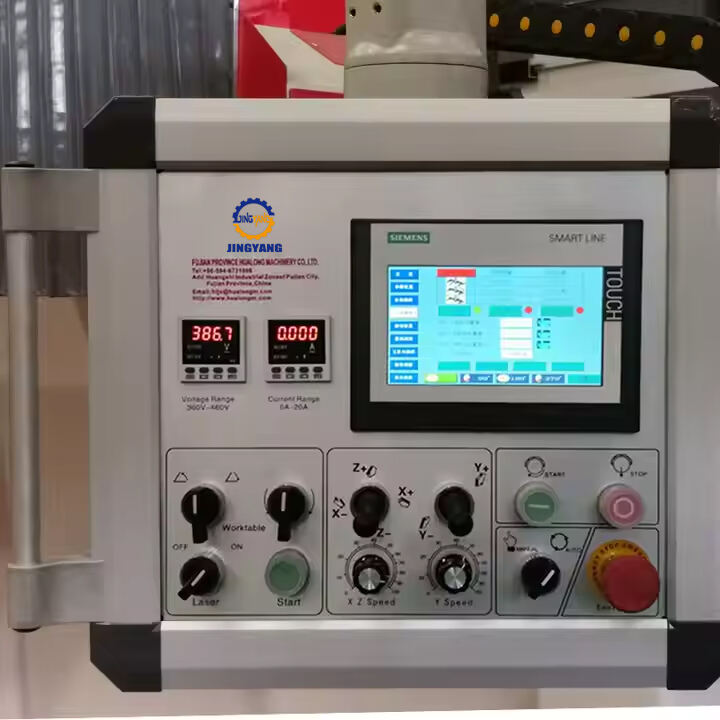

The Hualong HLSQ-450 is a high-precision automatic bridge saw stone cutting machine designed for cutting marble, granite, quartz, and other natural or engineered stone slabs. Built with a durable monoblock structure, this CNC granite cutting machine is easy to install and requires no foundation work. With a Siemens PLC control system and a touchscreen, this assembly allows intuitive programming and smart operation. The machine has interpolated axes, a 0°-270° rotating head, and a Tilting & rotating table; therefore, this machine is versatile concerning both straight and miter cutting.

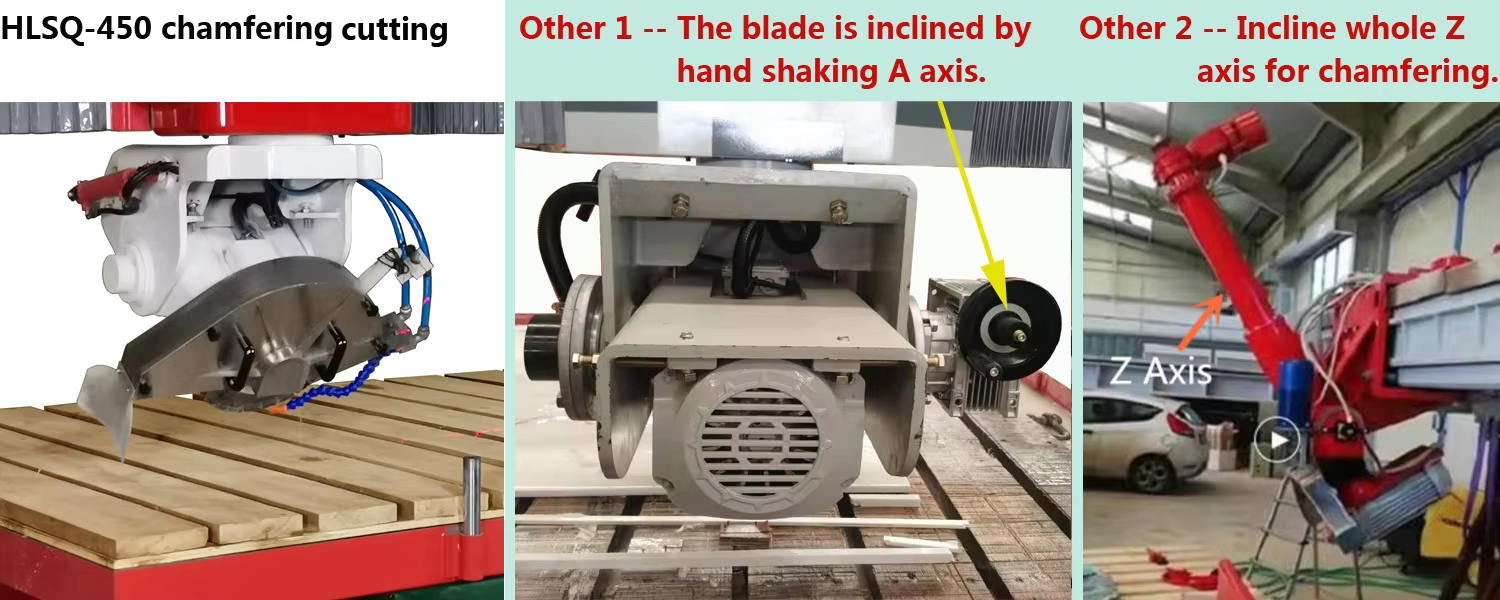

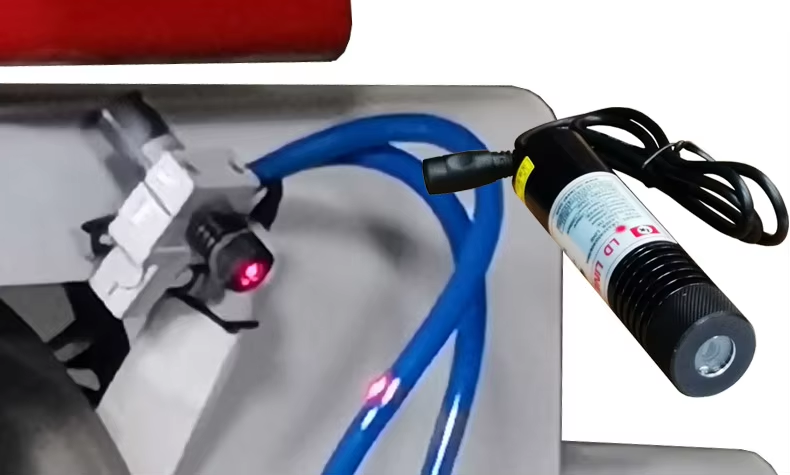

Even with automatic blade positioning, laser calibration, and a fully programmable cutting system, the HLSQ-450 also guarantees high efficiency, precision, and repeatability. Its 45-degree chamfering and one-button automatic cutting and manual cutting mode make it fit for both easy and complex fabrication works. When living or kitchen counter tops, floor tiles, wall cladding, and decorative stone panels have to be cut with a modest budget and at a predictable price, this CNC bridge saw for marble and granite offers a practical and efficient alternative for modern stone processing workshops.
|
TECHNICAL DATA HLSQ-450 |
|||
|
Configuration |
Diameter of saw blade |
mm |
Φ400 - Φ450 |
|
Dimension of working platform |
mm |
3300 x 2000 |
|
|
Power of main motor |
kw |
15 |
|
|
Power of tool slide reciprocating motor |
kw |
1.1 |
|
|
Power of crossbeam shifting motor |
kw |
1.5 |
|
|
Power of hydraulic station motor |
kw |
2.2 |
|
|
Power of elevator motor |
kw |
1.5 |
|
|
Gross power |
kw |
21.3 |
|
|
Main Performance Parameters |
Max. length of horizontal cutting |
mm |
3300 |
|
Max. thickness of cutting |
mm |
90 |
|
|
Max. lifting travel of cutter |
mm |
300 |
|
|
Water consumption |
m3/h |
2 |
|
|
Measurement |
Gross weight |
kg |
5400 |
|
Dimension (L x W x H) |
cm |
5700x3260x2765 |
|

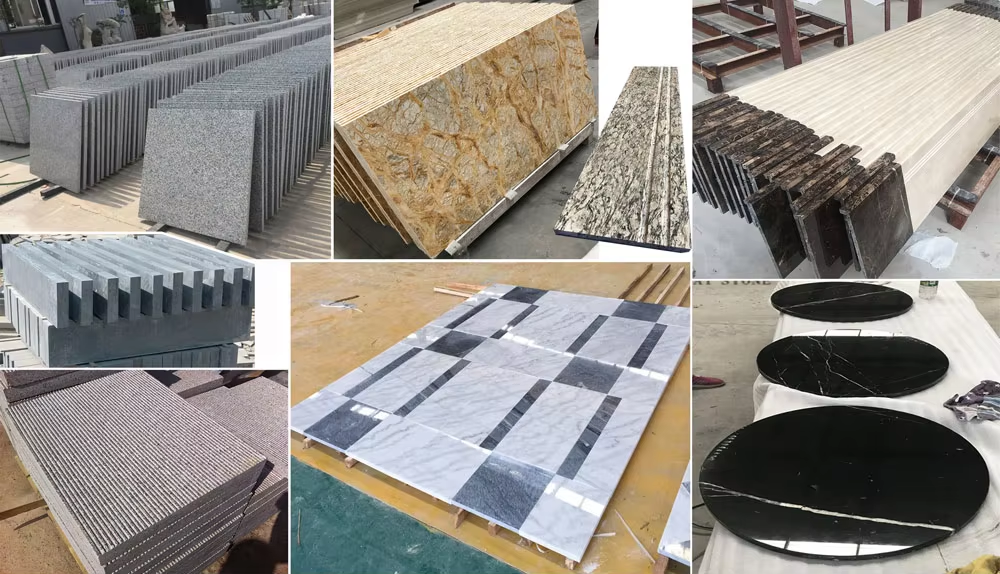

Marble slab cutting
Granite and quartz countertop fabrication
Engineered stone cutting
Floor and wall tile sizing
Chamfer edge cutting (45° bevel cuts)
Stone panels are preferred for home and commercial use decoration.
Sink and vanity top shaping
Stone slab resizing and optimization of layout
Marble slab cutting
Granite and quartz countertop fabrication
Engineered stone cutting
Floor and wall tile sizing
Chamfer edge cutting (45° bevel cuts)
Stone panels are preferred for home and commercial use decoration.
Sink and vanity top shaping
Stone slab resizing and optimization of layout
Q:What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: Are you trader or manufacture?
A: We are a leading manufacture in stone machinery for more than 30 years.
Q: What's the warrenty?
A: 1 year, but the technical support is lifetime.
Q: How can you guarantee the quality?
A: We have a professional quality control team, they will seriously inspect every manufacturing procedure during production. Also we will give every machine a overall check before delivery.
Q: Why should I buy your from you, not others?
A: We have professional R&D team in this industry over 30 years, experienced workers, responable QC team, good quality, competitive prices and excellent survice.
