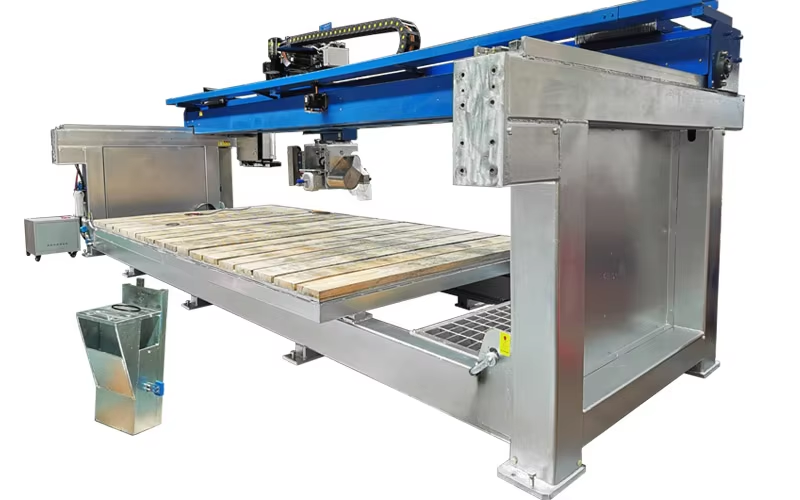

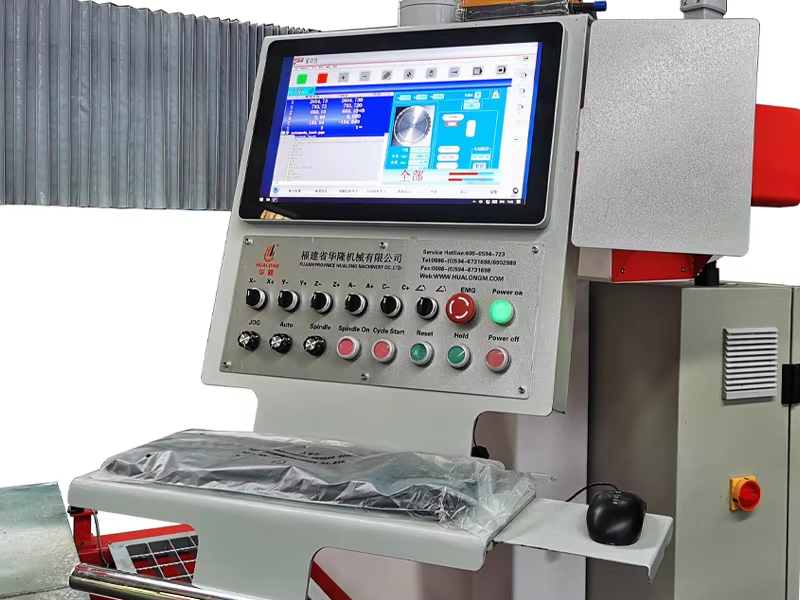

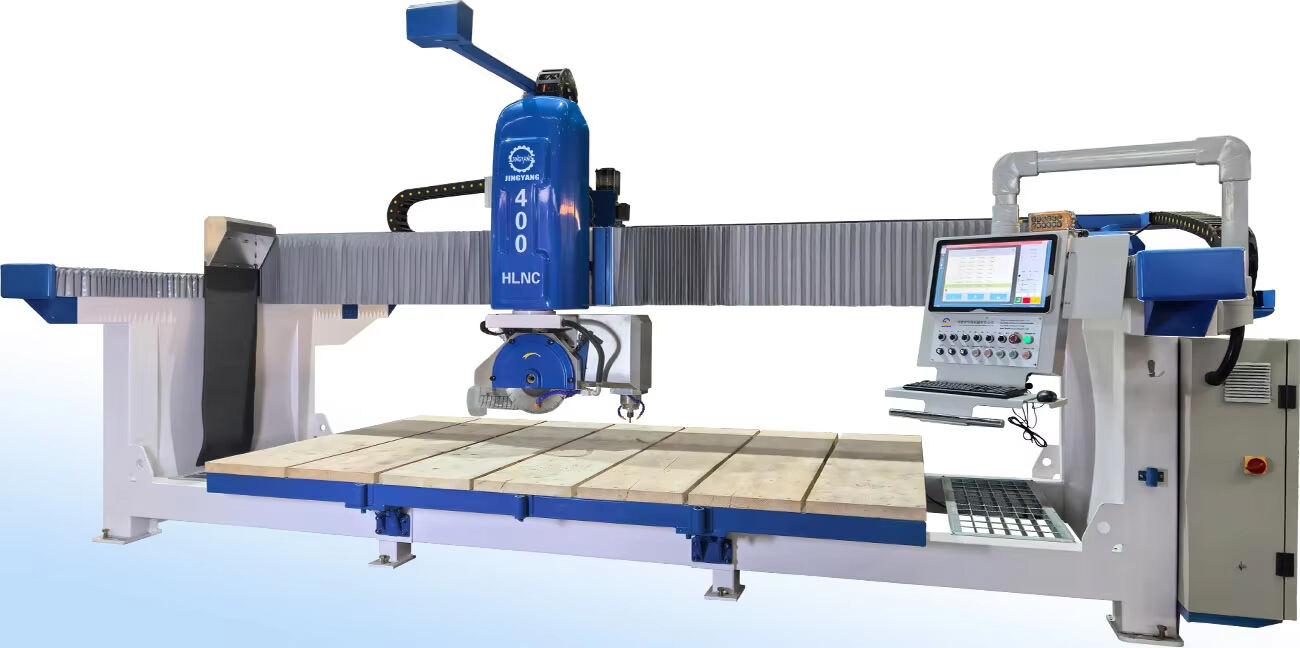

HLNC‑400+ is a high‑end 4‑axis bridge saw Cutting Machine , designed to be versatile, accurate to a high degree, while cutting marble, granite, quartz, and ceramic slabs or blocks. Fuelled by an Italian ESA CNC system with complete four‑axis interpolation, its 360° rotating saw head and ±45° tilt let you make straight, curved, vertical and incline cuts without reorienting your workpiece.

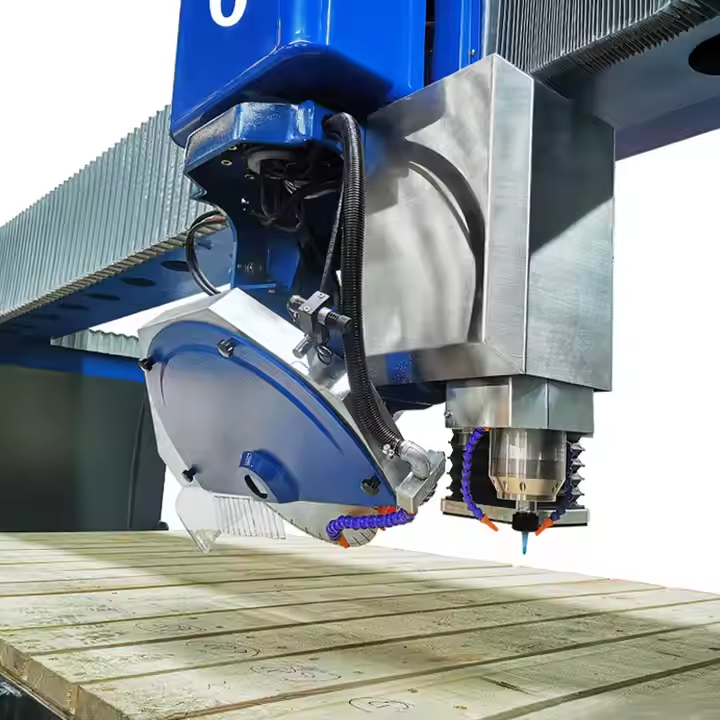

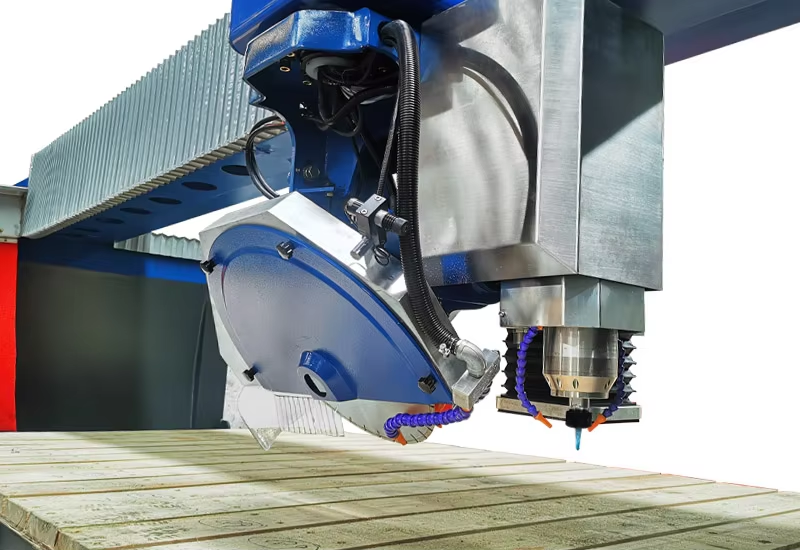

A heavy duty, 85 degree tilting table speeds up loading and unloading slabs, whilst the built in 2D profiling and milling features allow carving of decorative edges and contours in single pass. For intricate detail work, use the optional electro-spindle engraving module to do high-speed fine-depth 2D carvings and lettering. Whether you operate “one‑shot” cycle operations or “step‑by‑step” multi‑staged operations, HLNC‑400+ responds to both high‑volume countertop manufacture and individual architectural stone carving.

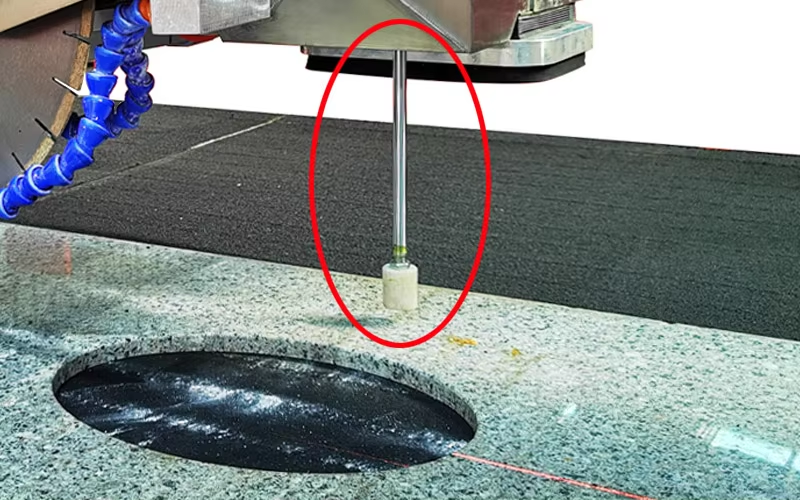

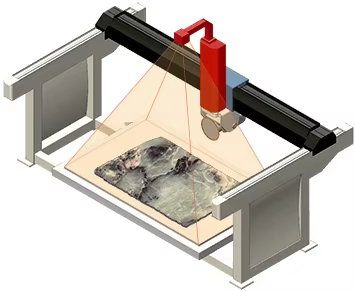

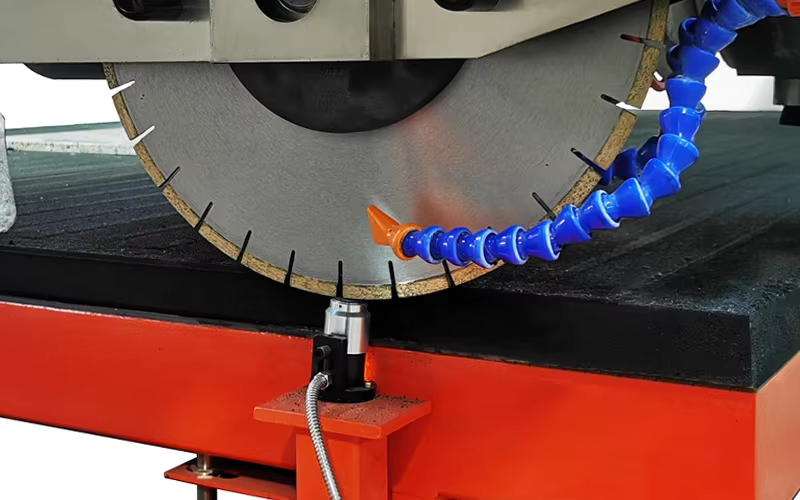

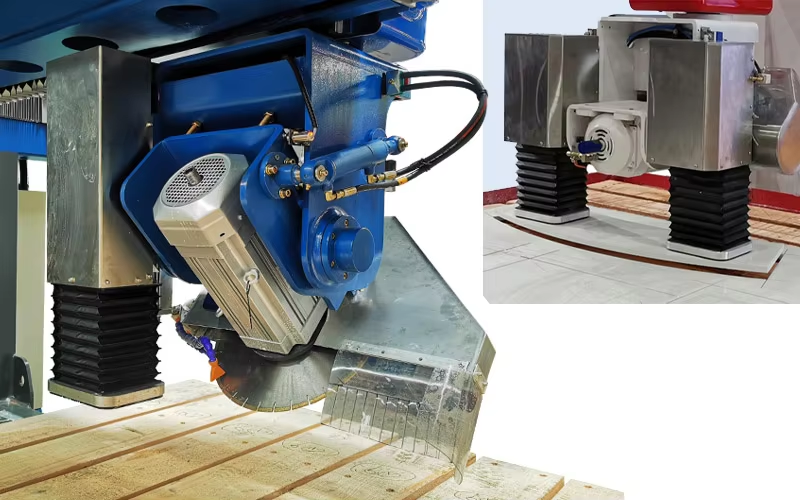

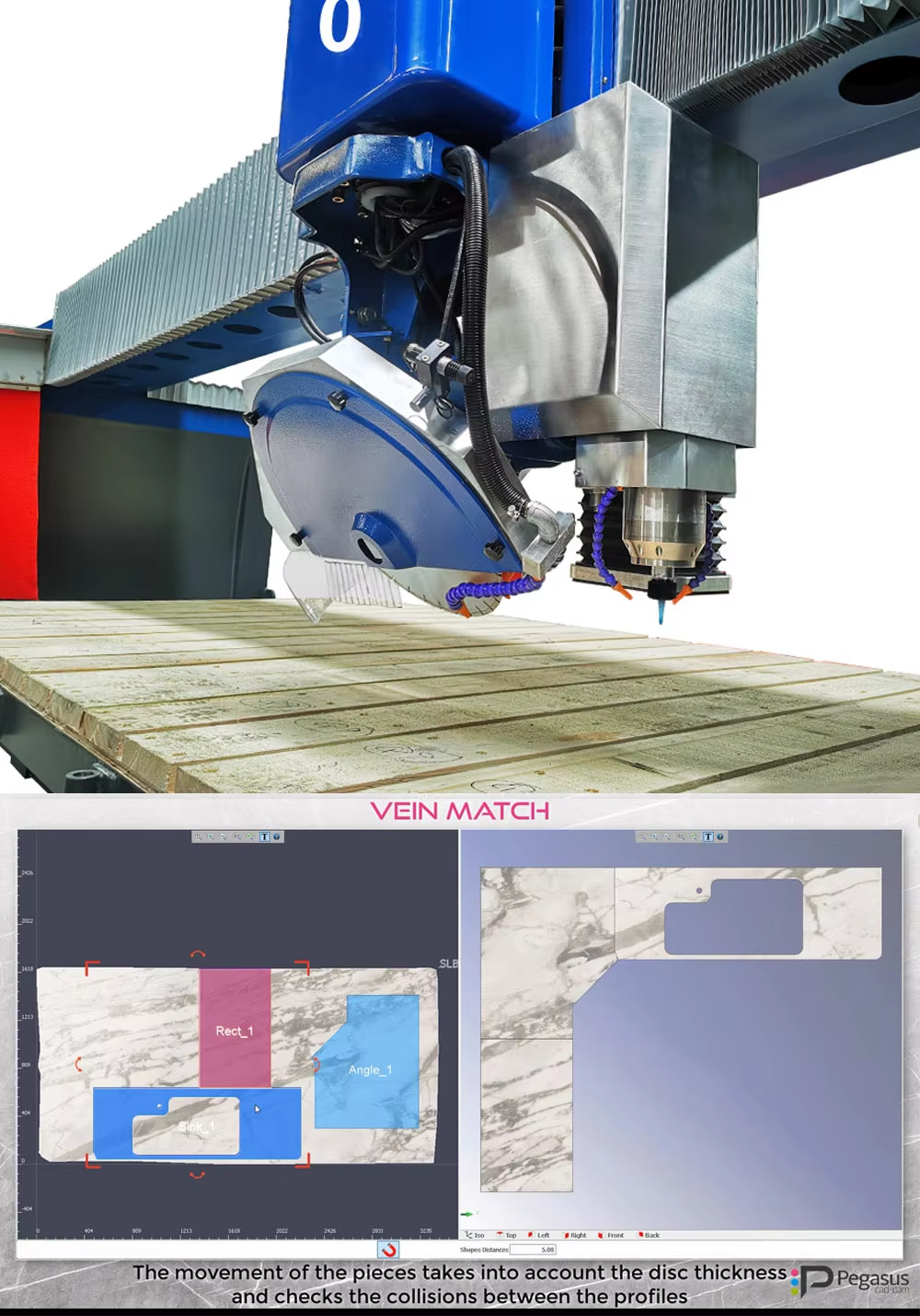

Modular add-ons: vacuum manipulators, photo-slab defect detection, vein-matching software, slab-thickness probes and tool-measuring units turn this CNC stone cutting machine into an automated production cell made for economy of waste and maximization of throughput.
|
Technical Data |
|||
|
Modle No. |
HLNC-400+ |
HLNC-650+ |
|
|
Diameter of saw blade |
mm |
ø400 |
ø650 |
|
Blade mitering |
° |
0-45 |
0-45 |
|
Dimension of working platform |
mm |
3500x2100 |
3500x2100 |
|
Max. cutting length |
mm |
3500 |
3500 |
|
Max. cutting thickness |
mm |
70 |
200 |
|
Max. lifting stroke |
mm |
250 |
300 |
|
Max. lifting weight by sunction cups |
kg |
100 x 2 |
100 |
|
Power of main motor |
kw |
15 |
18.8 |
|
Power of electric spindle motor |
kw |
5.5 |
5.5 |
|
Power of cutter frame reciproctating motor |
kw |
2 |
2 |
|
Power of crossbeam shifting motor |
kw |
1.1 |
1.1 |
|
Power of hydraulic station motor |
kw |
2.2 |
2.2 |
|
Power of lifting motor |
kw |
0.85 |
0.85 |
|
Gross power |
kw |
28.7 |
32.5 |
|
Water consumption |
m3/h |
2 |
2 |
|
Gross weight |
kg |
4500 |
6000 |
|
Dimensions (L x W x H) |
mm |
5800x3380x2770 |
6200x3380x3000 |

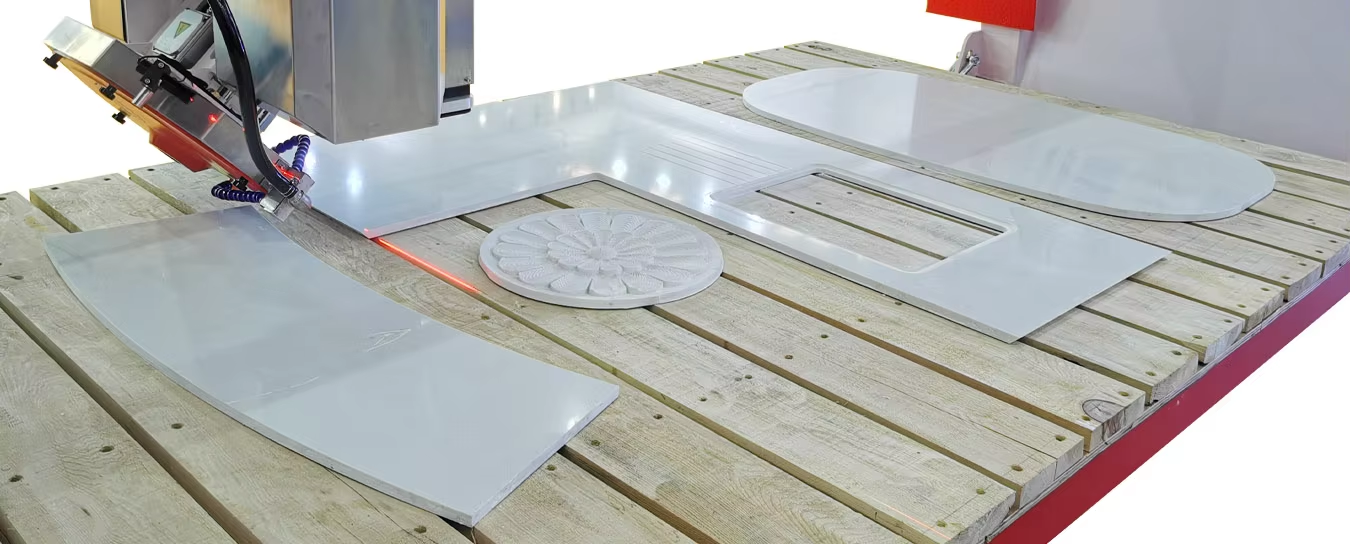

Kitchen & Bathroom Countertops – Fast sink cut‑outs, edge chamfering, and drain profiling.
Custom Vanity Tops – Without any joints or seams curved and beveled surfaces of engineered stone slabs.
Interior & Exterior Wall Panels – Perfect 2D profiling for decorative cladding and trim.
Stone Flooring & Inlays – Contouring of mosaics, medallions, and transition strips.
Doorsills, Stair Treads & Risers – Continuous bevels and grooves for safe and attractive steps.
Street Furniture & Urban Art – CNC router machine created angled edges to cut bench legs, planters, and bas‑relief installations.
Memorial & Funerary Plaques – High‑definition engraving and shallow sculpting for headstones.
4‑Axis Interpolated Control – Coordinated X/Y/Z/C‑axis motion for chamfers, miters and difficult outlines.
Flexible Cutting Modes – Straight, curved, vertical, or slanted workpiece cuts on the same tilting-table bridge saw.
Integrated Profiling & Milling – Stone routing and edge profiling make a combination with normal blade works.
High‑Speed Engraving – Optional electro‑spindle (up to 24 000 RPM) for cool, master art stone engraving CNC work.
Automated and Manual Nesting – Software generated layouts or hand‑made placement for maximum utilization of a piece of slab.
Safe, Ergonomic Handling – 85° table tilt, plus optional vacuum lifter, alleviates the physical strain on the prep staff and increases prep speed.
Customizable Automation – Photo‑slab scanning, vein matching, thickness probing, and tool presetting make production easier.
Durable Industrial Design – Strong frame, linear guides and sealed electronics translate to long‑term reliability.
Invest in your workshop with the HLNC‑650+ to have an all‑in‑one CNC stone cutting solution that can go from custom art pieces to high‑volume cut‑to‑size countertop lines —improving accuracy, productivity, and material utilization.

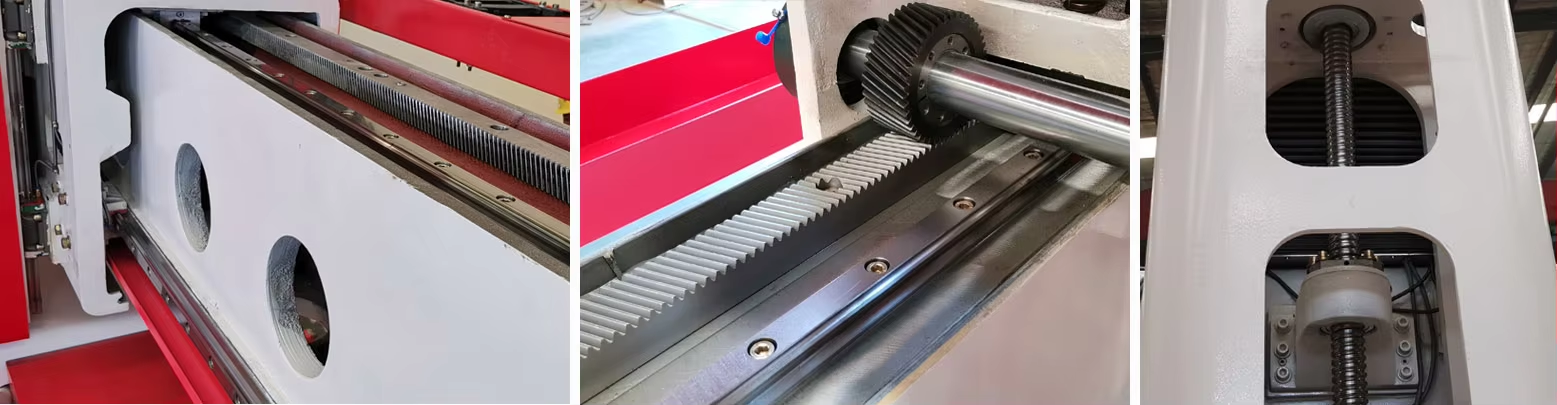

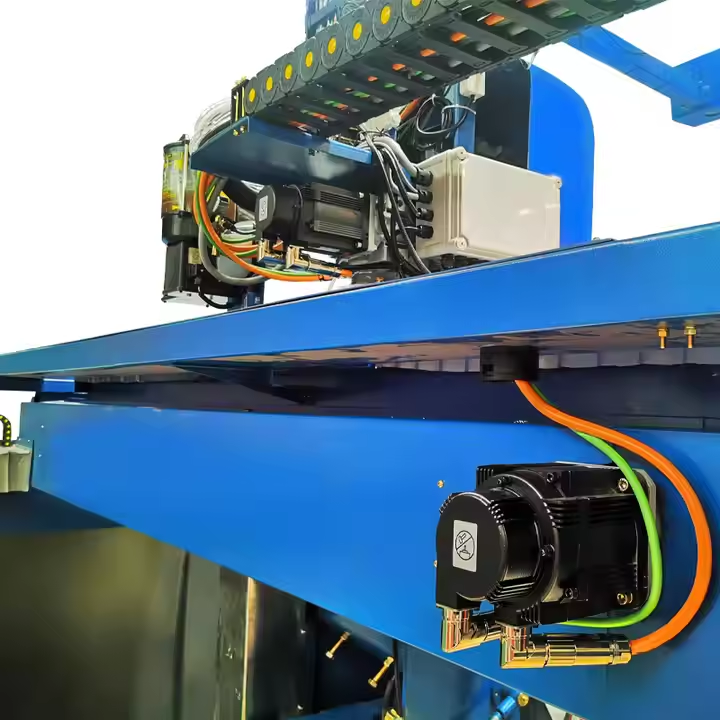

Linear Guide
Brand: Hiwin | Origin: Taiwan, China
High-precision Hiwin linear guideways are installed on the crossbeam and carriage, ensuring smooth travel, cutting accuracy, and long service life. This design guarantees stability and reliability during high-speed machining.
Q:What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: Are you trader or manufacture?
A: We are a leading manufacture in stone machinery for more than 30 years.
Q: What's the warrenty?
A: 1 year, but the technical support is lifetime.
Q: How can you guarantee the quality?
A: We have a professional quality control team, they will seriously inspect every manufacturing procedure during production. Also we will give every machine a overall check before delivery.
Q: Why should I buy your from you, not others?
A: We have professional R&D team in this industry over 30 years, experienced workers, responable QC team, good quality, competitive prices and excellent survice.
