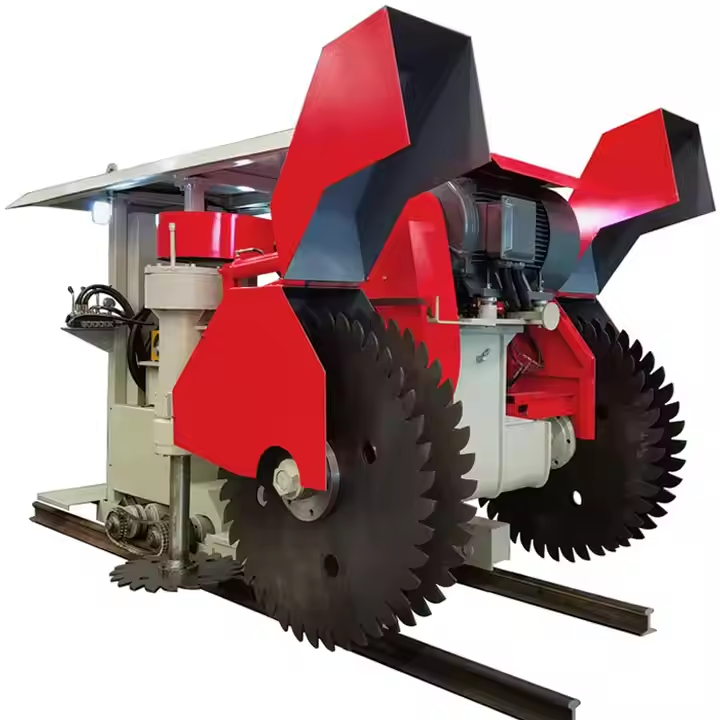

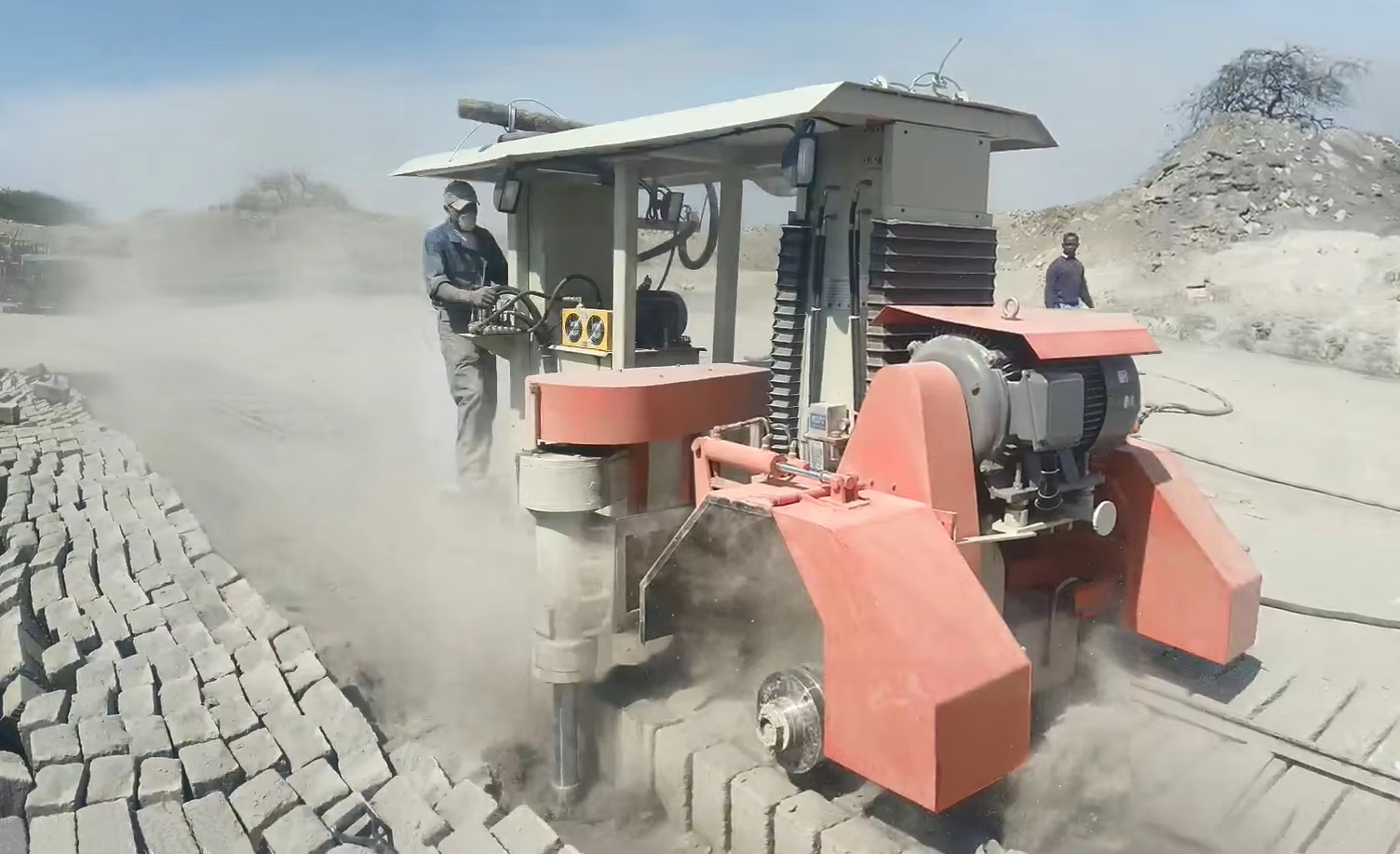

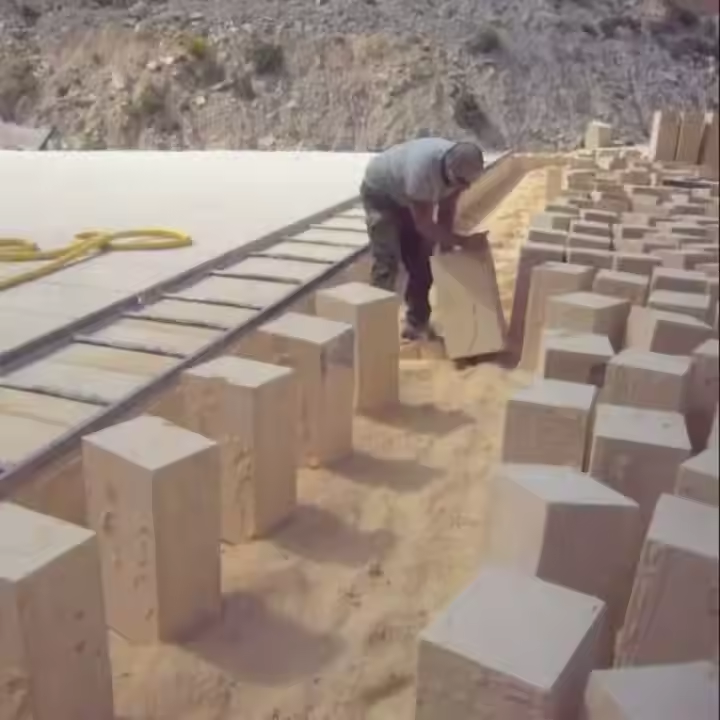

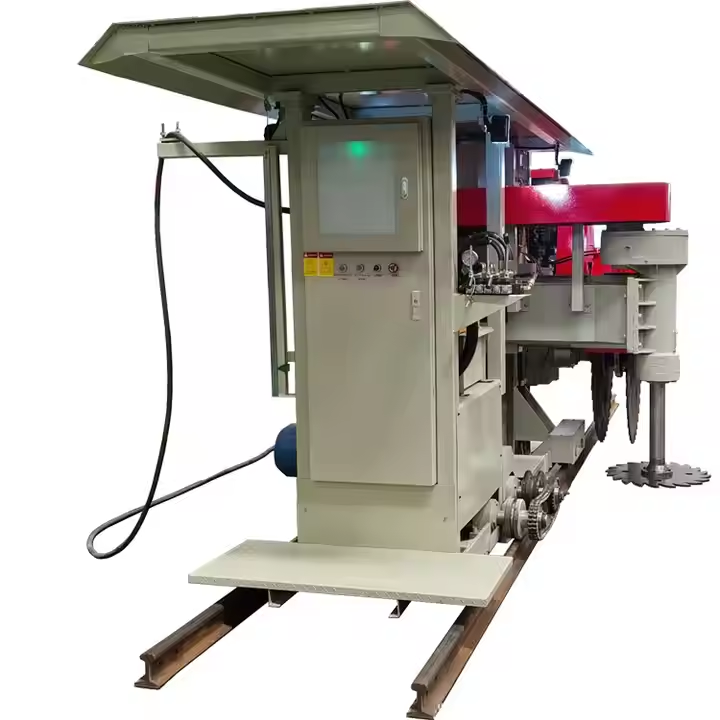

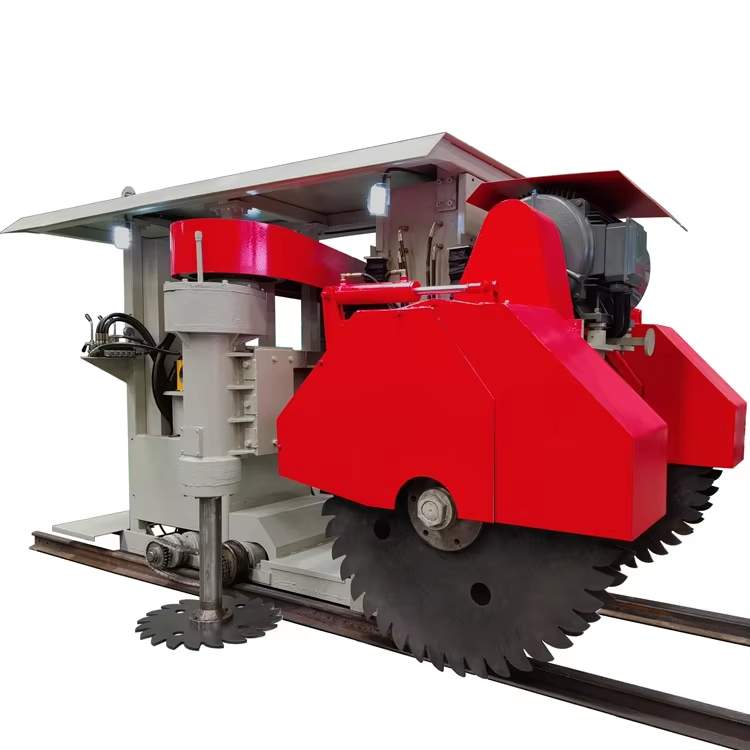

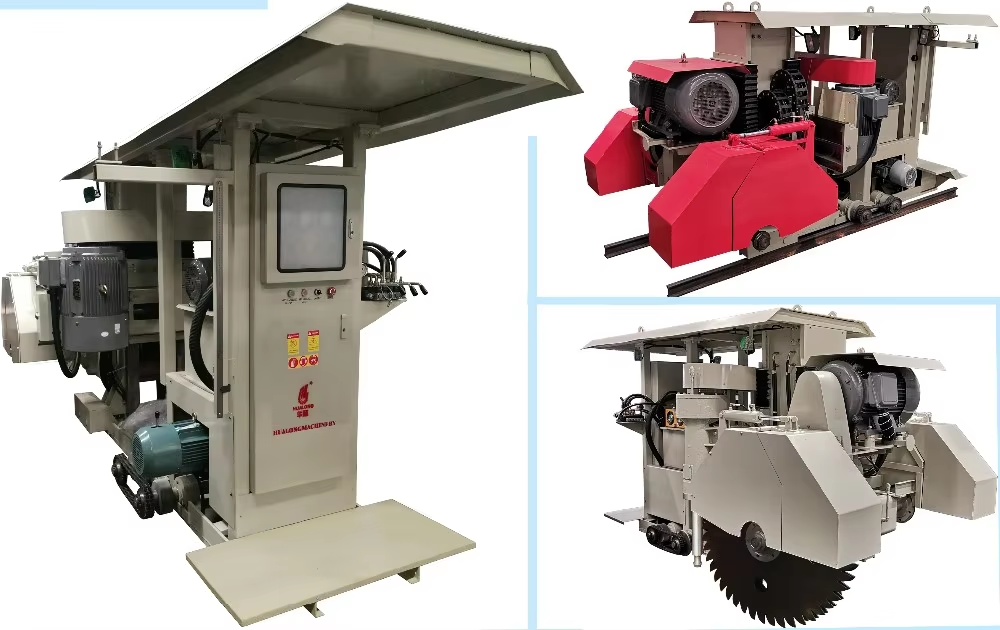

The HKSS -Series is a machine produced by Hualong, As a mean of extraction of minerals often used in construction, such as limestone, sand stone, laterite, etc, into Bricks.
The HKSS has a Simple yet strong structure:
This machine can be equipped with hor izontals and verticals blades, all relying on large vertical guide pillar,
Placed on a dual-cylinder Guide rail, offering the machine stability and flexibility
(Capable of Cross-cutting, with its thick and big rocker and swing arm structure, making the machine stable and fast when lifting the blade
While conserving a long-service expectancy)
The electrical components used are all *International Branded electronic component, from renown manufacturer,

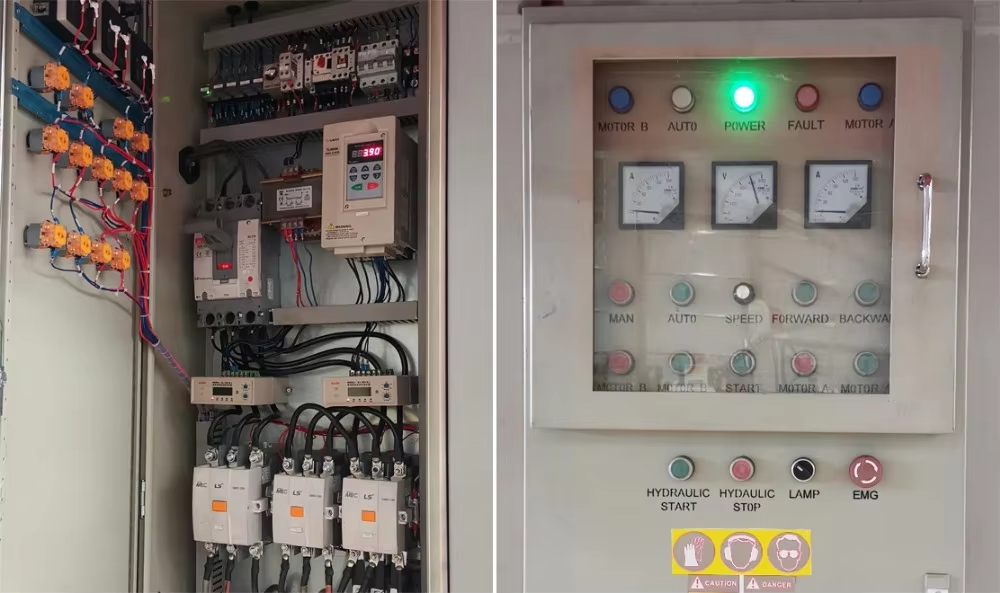

the Power Connection & Operation Panel: comes From Siemens, Schneider, SANCH, all components are CE certified
Fitted with an Automatic intelligent frequency control technology, Accessible via a simple User-friendly interface for a more convenient operation, a higher accuracy of cut and an increased efficiency,

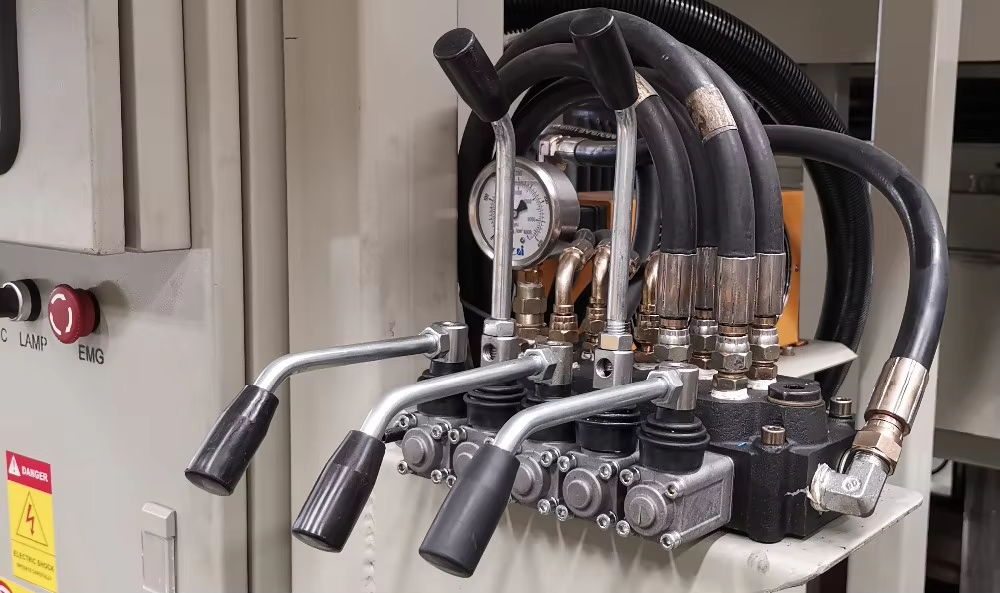

fitted with manual control joysticks(up/down control, spindle up/down control, left/right, blade cover open/ close)to operate the machine

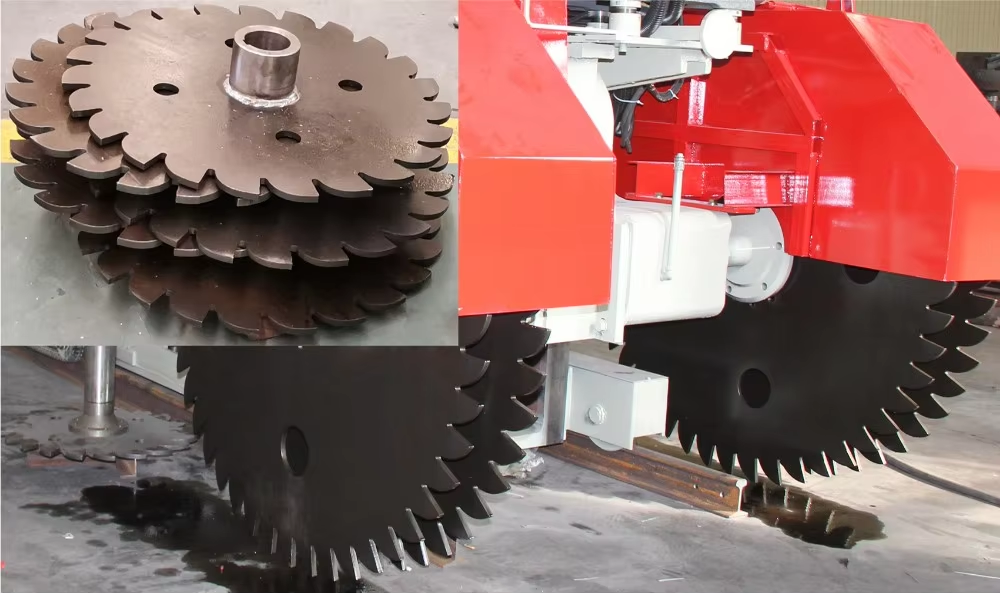

The Blades are made with Q460C manganese Steel : a material with a very high heat tolerance, made from a heat treatment process making it difficult to deform
The cutter heads are made with Cemented carbide , which is hard, Making it very resistant to wear, heat and corrosion.

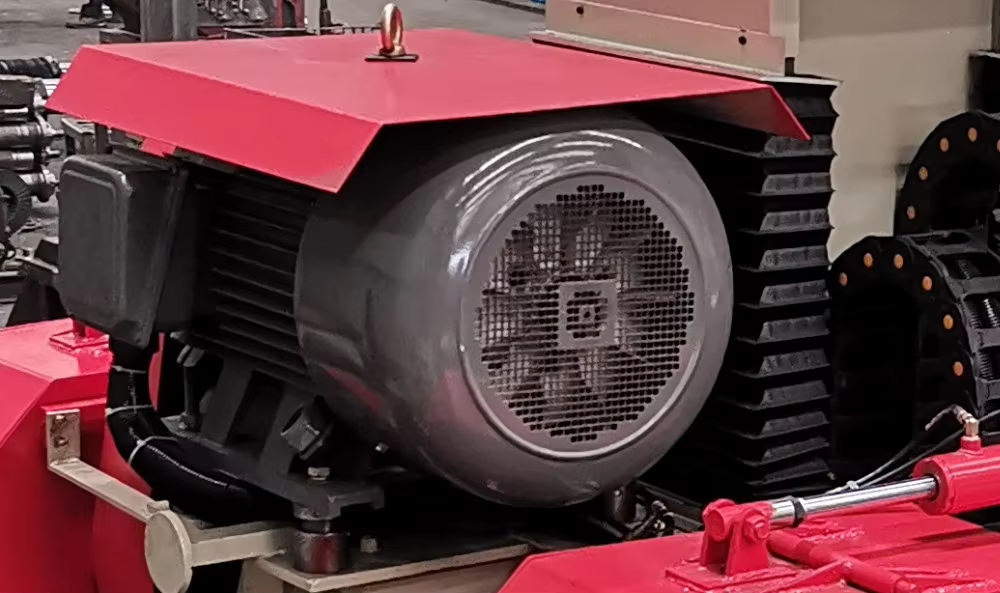

Powerful and efficient motors are mounted on the HKSS -Series
With a high coefficient Efficiency: with up to 93% yield, in addition to a Low energy consumption
Less emission of stone powder
Very wide array of customization
A simple structure with accessible components ,making it very easy to work on and maintain, a lower profile and a compact shell makes it easier to transport without the need to be fully disassembled: for instance a 40 feet container can transport 2 of this machine ; On arrival on site , the buyer only need to install the machine on the rails, supply it with a power source, mount the blades and Voila, The machine is ready to be operated
Each Set of blade can also be installed depending on the thickness of the bricks
|
MODEL NO. |
UNIT |
HKSS-1200 |
HKSS-1400 |
|
Diameter of Vertical Blade |
mm |
1200 |
1330 |
|
Diameter of Horizontal Blade |
mm |
600 |
600 |
|
Thickness of Blade |
mm |
12 |
12 |
|
Cutting Thickness (Max) |
mm |
500 |
500 |
|
Moving Speed (Forward and Backward) |
M/min |
10-45 |
10-45 |
|
Max Distance of Dual Vertical Blades |
mm |
420 |
520 |
|
Max Distance of Cylinder Lifting |
mm |
700 |
700 |
|
Power of Vertical Driving Motor |
Kw |
45 |
75 |
|
Power of Horizontal Driving Motor |
Kw |
30 |
45 |
|
Power of Stroke motor |
Kw |
3 |
5.5 |
|
Power of Hydraulic System Motor |
Kw |
5.5 |
5.5 |
|
Gross Power |
Kw |
83.5 |
131 |
|
Weight |
Kg |
5500 |
6000 |
|
Specifications |
mm |
4840*2050*2580 |
4840*2050*2585 |
|
Power of Rail Motor |
Kw |
5.5 |
5.5 |
*Simple strong structure:
*Horizontals and verticals blades, relying on large vertical guide pillar
*Dual-cylinder Guide rail
*Cross-cutting with its thick and big rocker/ swing arm structure, stable Blade Elevation-depression mechanism
*long-service expectancy
*Easy to transport
*Branded electronic component
*Power Connection & Operation Panel:From Siemens, Schneider, SANCH, and certificated by CE
*User-friendly interface
* Joysticks Control:
- up/down control
- spindle up/down control
- left/right control
- blade cover open/ close
*Automatic control system
*Automatic intelligent frequency control technology, more convenient operation, higher accuracy and efficiency
*Configurable Blade preset
Blade:
*Q460C manganese Steel Blade : difficult to deform + heat treatment, HR up to 52
*Cemented carbide cutter heads, hard, wear-heat-corrosion resistant
Motors:
*Powerful: up to 11000Rpm
*Efficient: 93% yield
*Low energy consumption
*Less emission
* Can be customized
Q:What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: Are you trader or manufacture?
A: We are a leading manufacture in stone machinery for more than 30 years.
Q: What's the warrenty?
A: 1 year, but the technical support is lifetime.
Q: How can you guarantee the quality?
A: We have a professional quality control team, they will seriously inspect every manufacturing procedure during production. Also we will give every machine a overall check before delivery.
Q: Why should I buy your from you, not others?
A: We have professional R&D team in this industry over 30 years, experienced workers, responable QC team, good quality, competitive prices and excellent survice.
