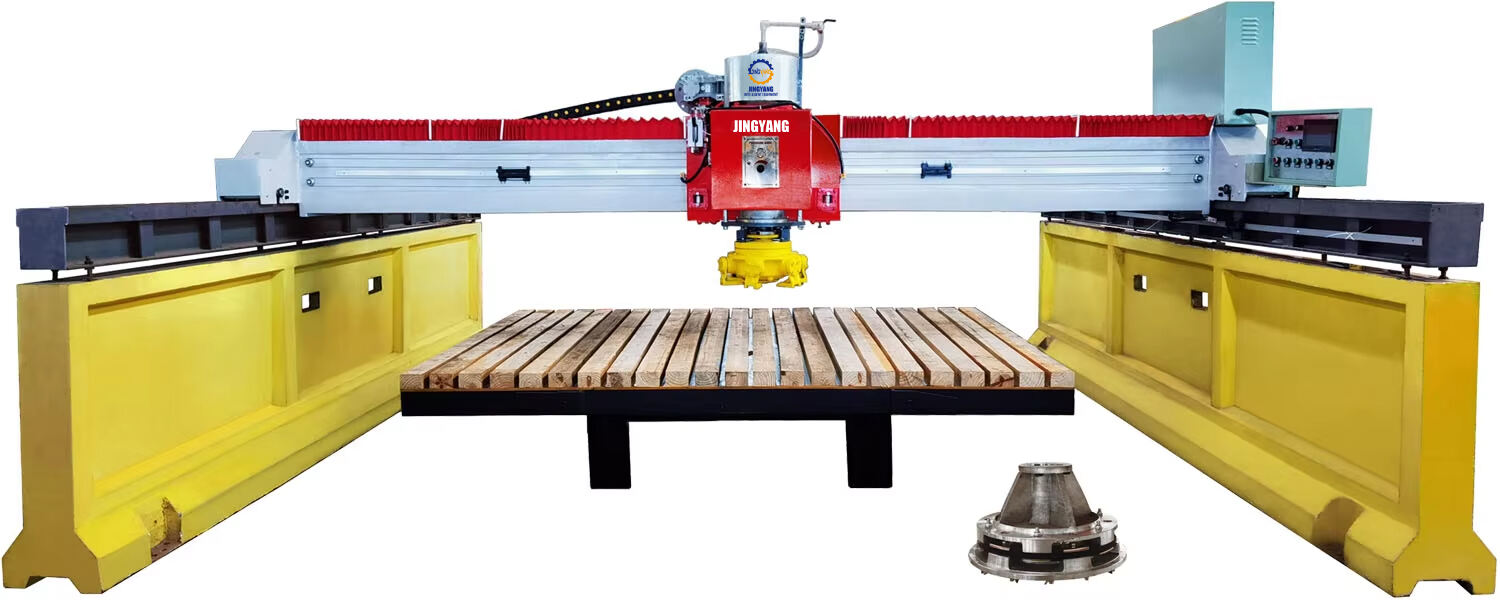

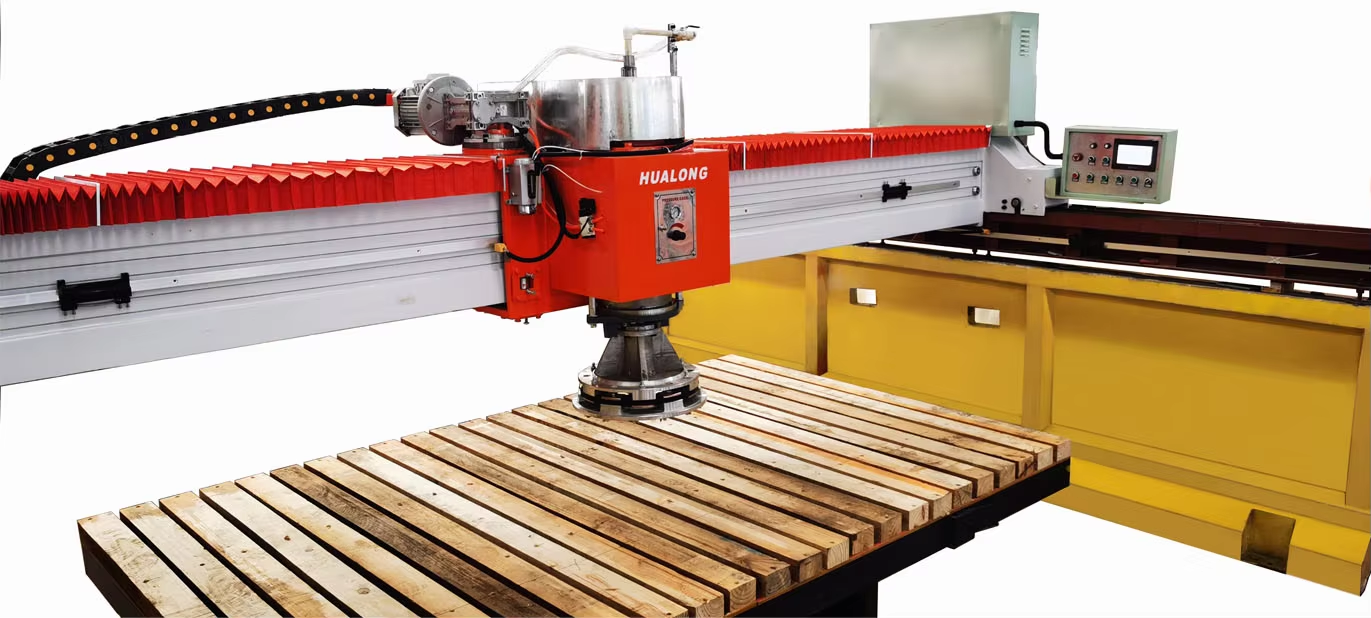

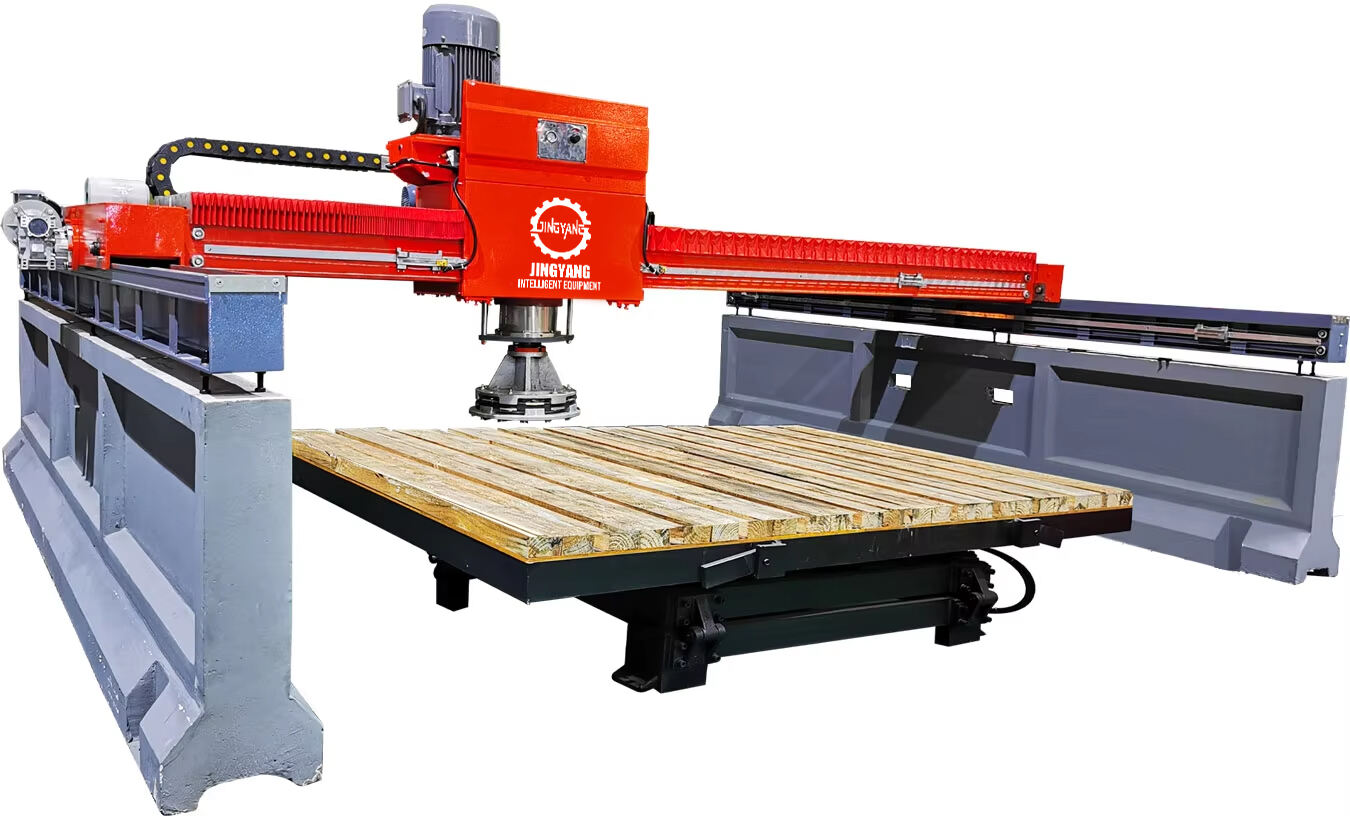

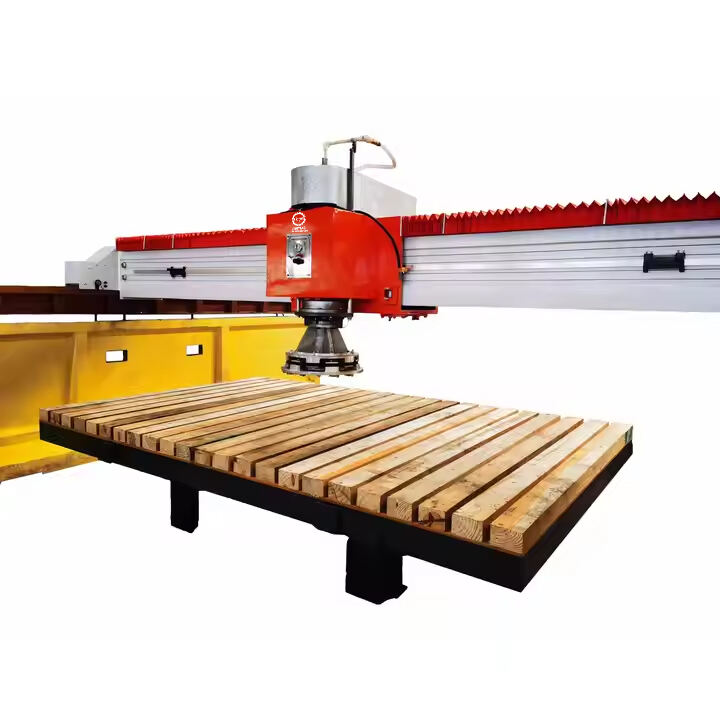

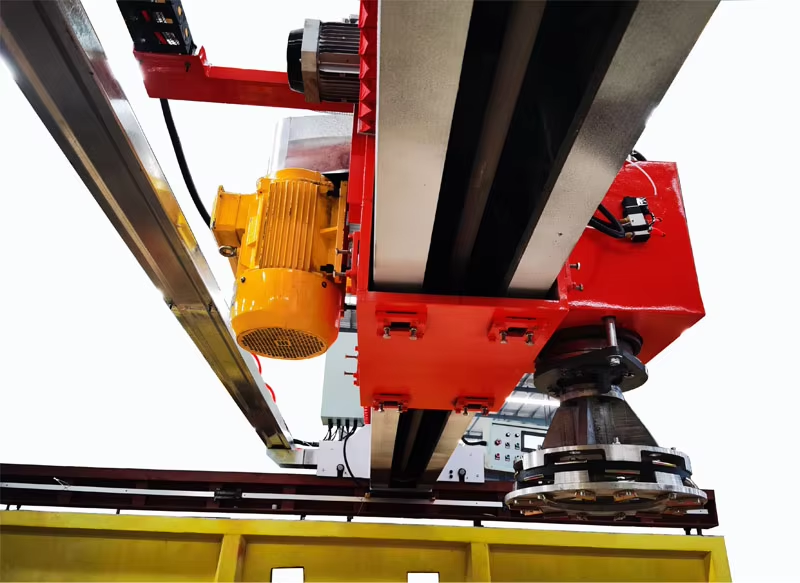

HLDM-1800 Single Head Bridge Stone Polishing Machine is an automatic stone surface finishing machine that works to polish granite, marble, and other natural stone slabs. Made in a sturdy and well-balanced design, this machine guarantees a polished result that is even, accurate, and consistent. The HLDM-1800, having a stable PLC control system, is capable of automatic operations and thus could be easily controlled and adjusted to different polishing tasks. This working table can be tilted at an angle not least 85 degrees, and this works very well for heavy loading and unloading of heavy stone slabs, thus enhancing the safety as well as the efficiency.

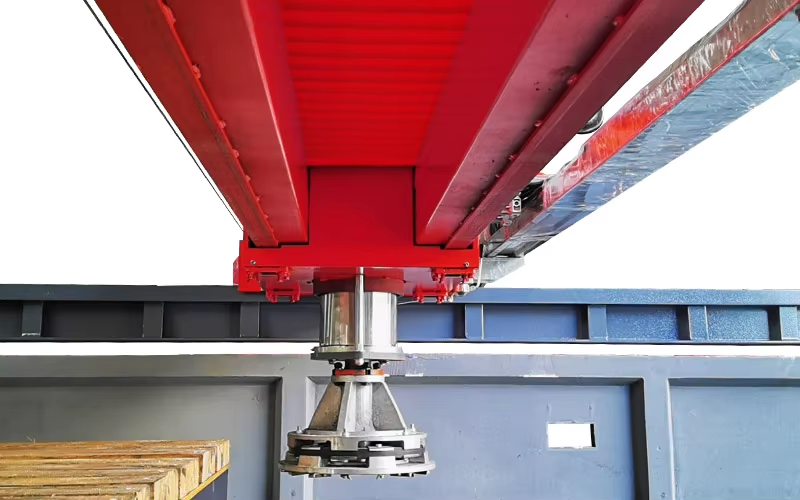

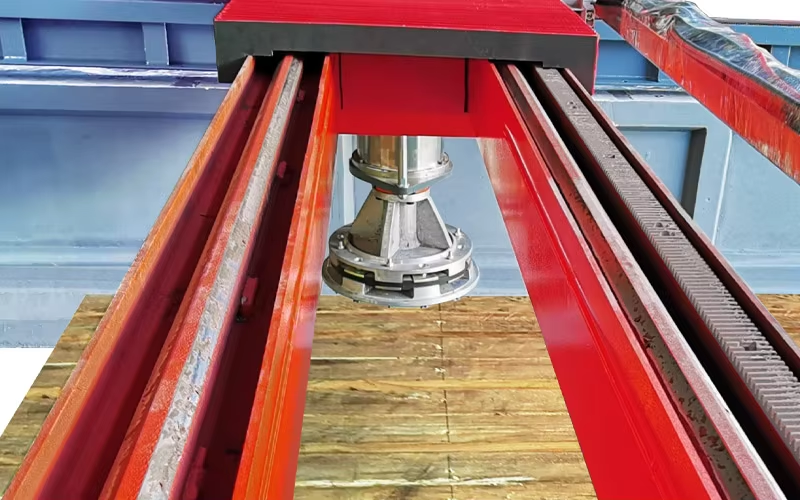

For the operations that for even greater stability and precision, the HLDM-1800+ model has employed a double-beam construction, providing enhanced support for the head and movement without bumps. This granite slab polishing machine is suitable for fabricators who need a cost-effective, durable, and maintenance-free granite to polish smoothly in workshops or on factory floors. If you use this machine to smooth out marble countertops, granite floor tiles, or decorative wall panels, you can achieve professional-quality results with little labor participation and little maintenance.
|
TECHNICAL DATA FOR HLDM-1800 |
|||
|
Configuration |
Power of main motor |
kw |
11 |
|
Working platform dimensions |
mm |
3200 x 2000 |
|
|
Air pressure required |
Mpa |
0.3 - 0.5 |
|
|
Main Performance Parameters |
Max. processing dimensions |
mm |
3200 x 3200 x 60 |
|
Working platform tilting degree |
n° |
0-85 |
|
|
R.P.M. of polishing head |
r/min |
550 |
|
|
X axis feeding speed |
mm/min |
5300 |
|
|
Y axis feeding speed |
mm/min |
4000 |
|
|
Air consumption |
m3/min |
0.15 - 0.3 |
|
|
Water consumption |
m3/h |
4 |
|
|
Measurement |
Gross weight |
kg |
7000 |
|
Dimension (L x W x H) |
mm |
6000 x 5000 x 2800 |
|
Polishing granite, marble, and quartz slabs on the surface.
Edge treatments on stone countertops, wall panelings, and floor tiles
Stone monument and tombstone polishing
Surface preparation of the slab for painting or sealing
Suited to smaller to medium-sized stone fabrication shops
Automatic PLC Control: Facilitates user-friendly, accurate, and stable operation with the minimum of human intervention.

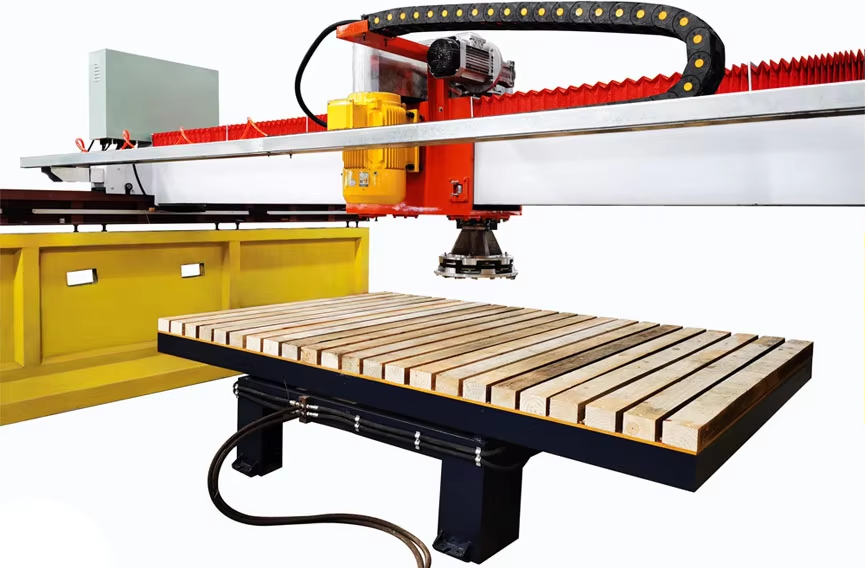

Tilting Work Table: The 85° tiltable table facilitates an easy slab loading and unloading hence minimal physical strain and increases on productivity.
Compact & Efficient Design: Compact design allows considering its use in numerous workshop setups.
Smooth & Precise Movement: Guarantees high quality of polishing and consistent surface finish on all slabs of stone.
Optional Double Beam Version (HLDM-1800+): Impaired polishes – improved polishes.
Low Maintenance: Simple mechanical configuration means less downtime and lower servicing costs.
Flexible Applications: Performs well on most types of stone and in various stone thicknesses.
Q:What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: Are you trader or manufacture?
A: We are a leading manufacture in stone machinery for more than 30 years.
Q: What's the warrenty?
A: 1 year, but the technical support is lifetime.
Q: How can you guarantee the quality?
A: We have a professional quality control team, they will seriously inspect every manufacturing procedure during production. Also we will give every machine a overall check before delivery.
Q: Why should I buy your from you, not others?
A: We have professional R&D team in this industry over 30 years, experienced workers, responable QC team, good quality, competitive prices and excellent survice.
