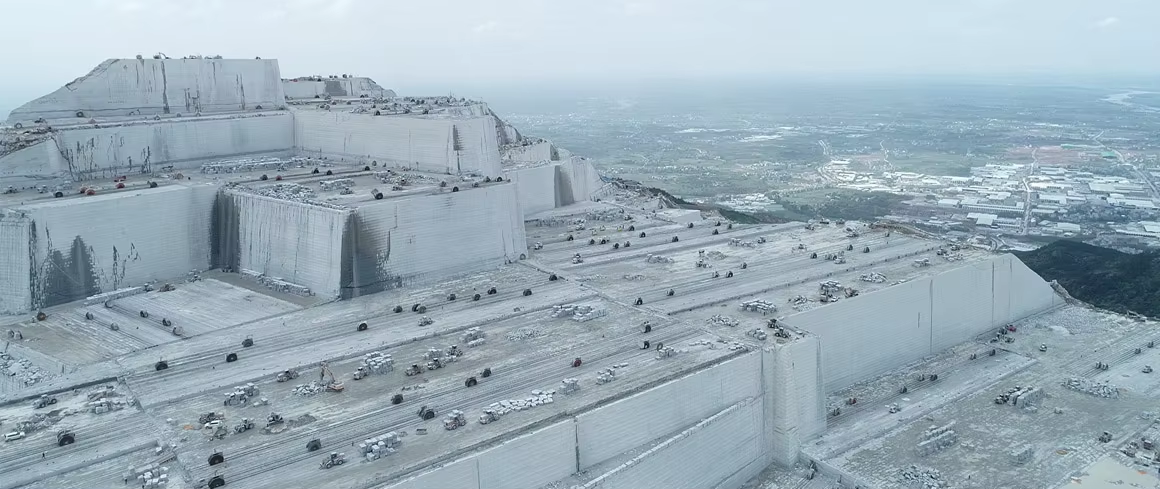

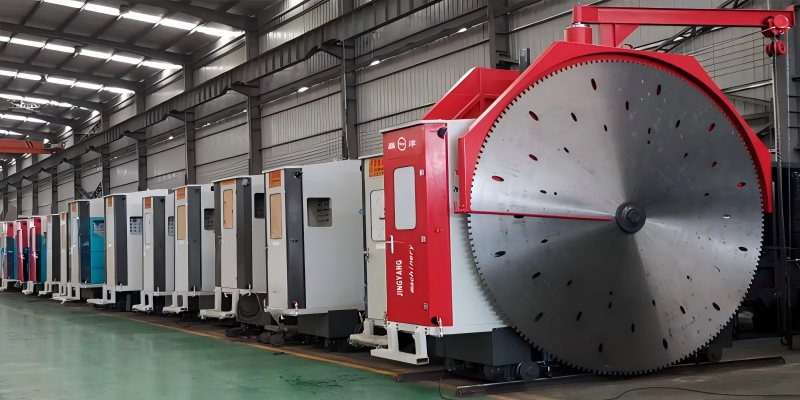

The JINGYANG 2QYKZ Stone Quarry Machine with PLC Technology belong to the 2QYK-Series, specialized mining equipment produced and developed by Hualong Industry , widely used in area with large open air Quarry and mines, for the extraction of natural , semi-precious minerals and stone into big block Size, renown for their efficiency and reliability, a very popular choice among our associates

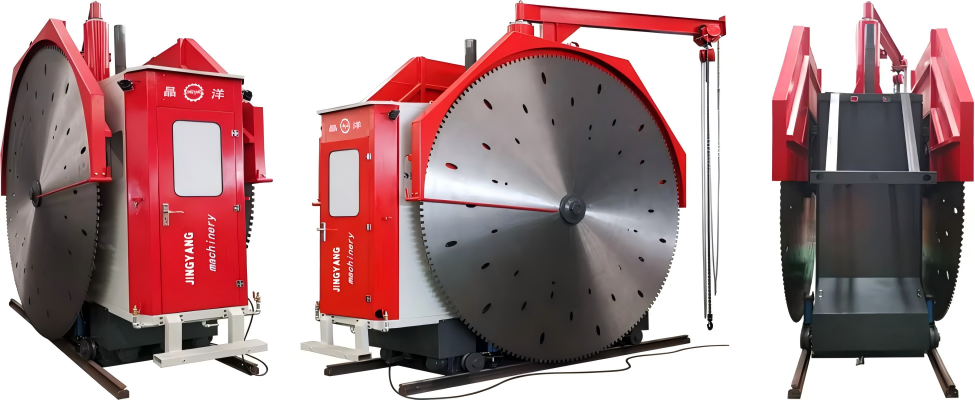

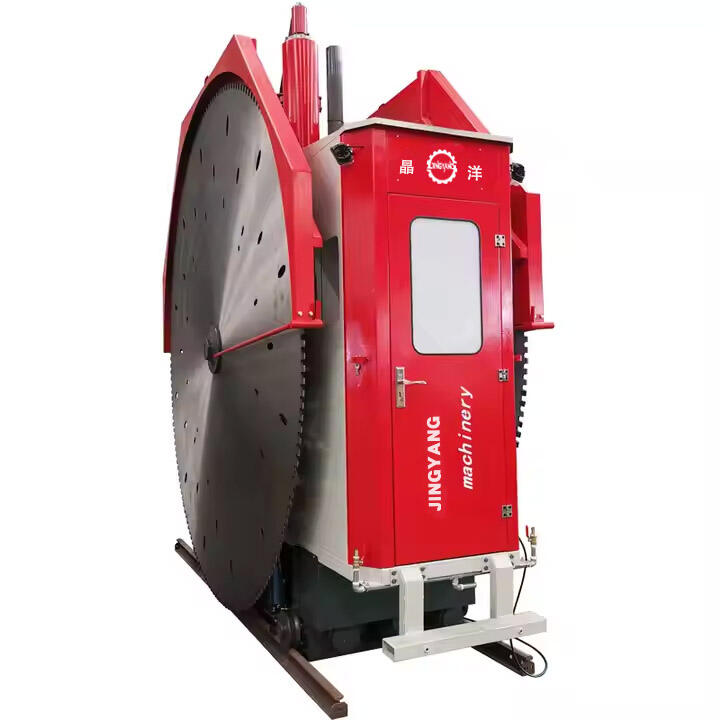

A mono-block Structure Made with a High-quality, rigid and durable Steel, easy to transport and install, and by its design all the parts are easily accessible to the operator, which makes the maintenance easier

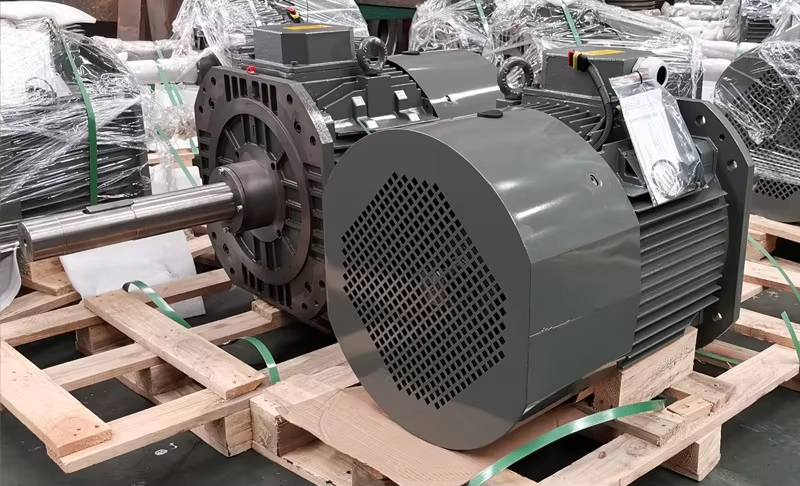

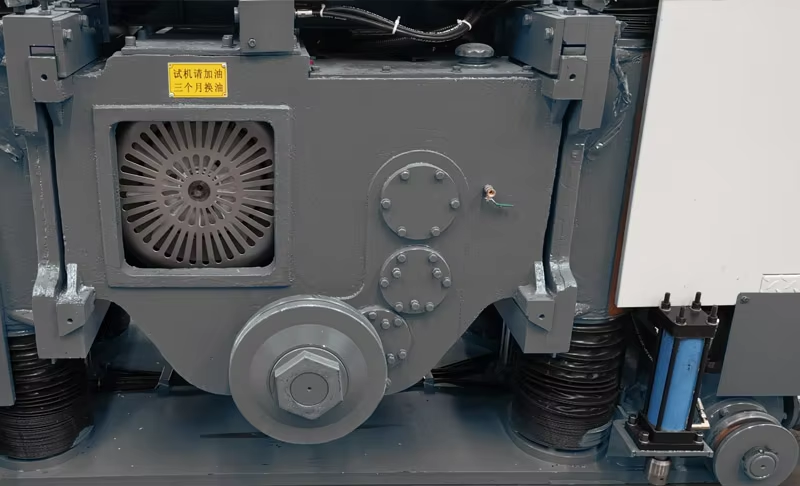

Equipped with 2 High performance Asynchronous permanent magnet motor capable of 11000rpm, adjustable with a frequency converter, to better suit a large variety of cut parameter depending on the hardness of the stones; installed on 4 rollers making the blades rotate smoother, steadier, enhancing the machine operations safety
Very reliable Design, the motors are less prone to overheating and over pressurizing, and can be used for a long period of time without issues. It is also much quieter and at 10%-15% more economical compared to the 2QYKT Series

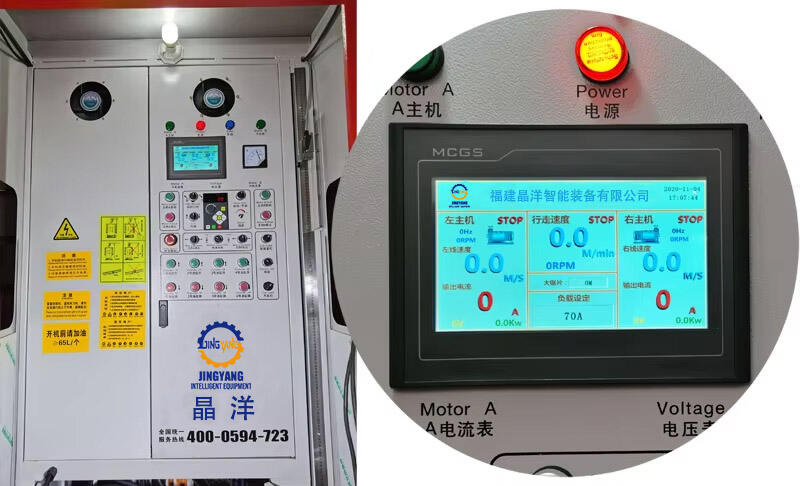

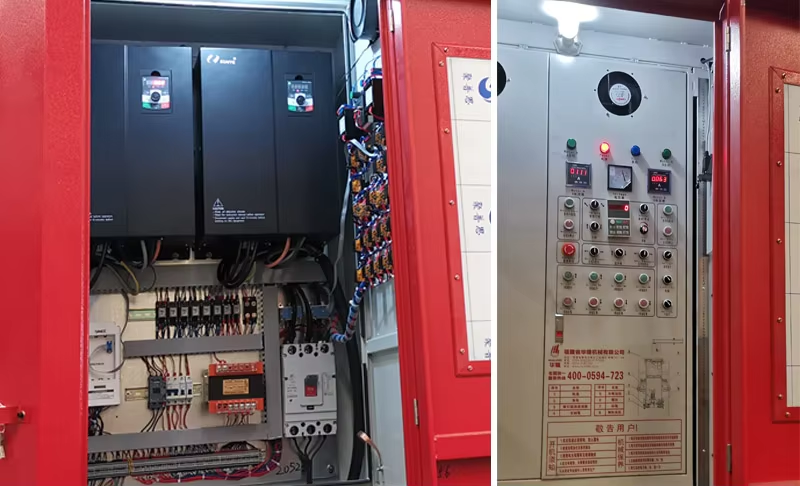

Its electrical components are based on PLC Technology from Siemens, with an integrated IA capable of a full autonomous operation : Cut parameter, Autonomous Control, Automatic operation surveillance; with a high Numerical dimensions and interaction adaptability, accessible to the operator through an intuitive Man-Machine Touch Screen
A high quality Hydraulic System have/has been mounted on the machine, resulting in a significant increase in the stability and a better cut result overall
The Blades are forged from High-quality material, with a cut-hole design to reduce Weight and load on the motor, reducing the power loss by about 10%
All of these factors contribute to an increase on the overall productivity, with an increase of about +10%, with a processing speed around 15sqm/h, while only needing 1USD/H to operate
|
Name |
Unit |
2QYKZ-3600 |
|||
|
Type |
————————— |
A |
B |
C |
D |
|
Blade Diameter |
mm |
3600 |
|||
|
Max Cutting Thickness |
mm |
1550 |
|||
|
Max Cutting Width |
mm |
1360-1860 |
1500-2000 |
2200-2700 |
2700-3200 |
|
Main motor power |
Kw |
66*2 |
|||
|
Oil pump motor |
Kw |
3.5 |
|||
|
Power of Vertical Drive |
Kw |
1.5*2 |
|||
|
Power of Railway Switch motor |
Kw |
0.75*2 |
|||
|
Gross Power |
Kw |
139.2 |
|||
|
Dimensions |
cm |
370*220*275 |
|||
|
Gross Weight |
Kg |
7000-8500/9000 |
|||
|
Name |
Unit |
2QYKZ-3800 |
|||
|
Type |
————————— |
A |
B |
C |
D |
|
Blade Diameter |
mm |
3800 |
|||
|
Max Cutting Thickness |
mm |
1650 |
|||
|
Max Cutting Width |
mm |
1360-1900 |
1500-2000 |
2300-2800 |
2700-3200 |
|
Main motor power |
Kw |
72*2 |
|||
|
Oil pump motor |
Kw |
4 |
|||
|
Power of Vertical Drive |
Kw |
1.5*2 |
|||
|
Power of Railway Switch motor |
Kw |
|
|||
|
Gross Power |
Kw |
151 |
|||
|
Dimensions |
cm |
410*160*305 |
|||
|
Gross Weight |
Kg |
7000-10000 |
|||
|
Name |
Unit |
2QYKZ-4600 |
|||
|
Type |
————————— |
A |
B |
C |
D |
|
Blade Diameter |
mm |
4600 |
|||
|
Max Cutting Thickness |
mm |
2050 |
|||
|
Max Cutting Width |
mm |
1950-2450 |
—————— |
2300-2800 |
2600-3500 |
|
Main motor power |
Kw |
80*2 |
|||
|
Oil pump motor |
Kw |
4 |
|||
|
Power of Vertical Drive |
Kw |
1.5*2 |
|||
|
Power of Railway Switch motor |
Kw |
|
|||
|
Gross Power |
Kw |
167 |
|||
|
Dimensions |
cm |
470*195*370 |
|||
|
Gross Weight |
Kg |
9000-12000 |
|||
|
Name |
Unit |
2QYKZ-4200 |
|||
|
Type |
————————— |
A |
B |
C |
D |
|
Blade Diameter |
mm |
4200 |
|||
|
Max Cutting Thickness |
mm |
1850 |
|||
|
Max Cutting Width |
mm |
1950-2450 |
—————— |
2300-2800 |
2600-3500 |
|
Main motor power |
Kw |
72*2 |
|||
|
Oil pump motor |
Kw |
4 |
|||
|
Power of Vertical Drive |
Kw |
1.5*2 |
|||
|
Power of Railway Switch motor |
Kw |
|
|||
|
Gross Power |
Kw |
151 |
|||
|
Dimensions |
cm |
450*195*350 |
|||
|
Gross Weight |
Kg |
8000-11000 |
|||

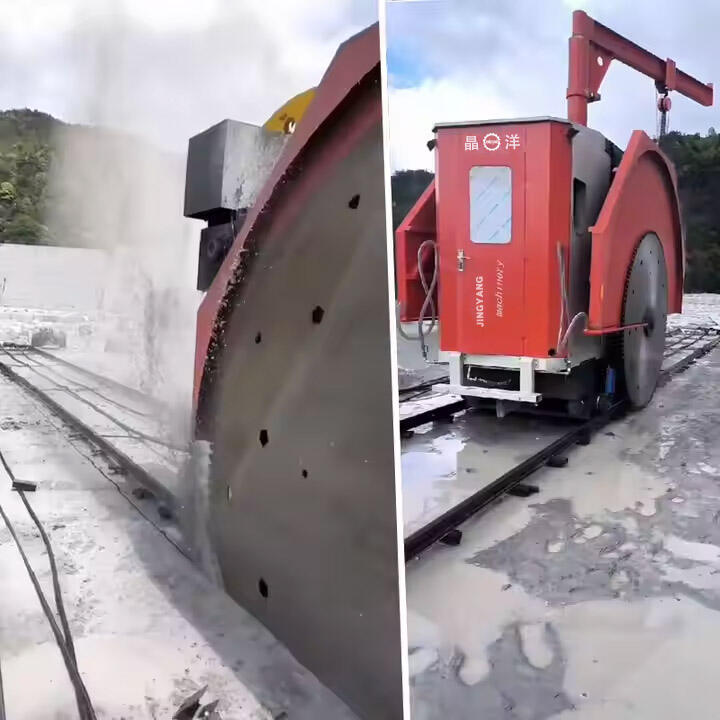

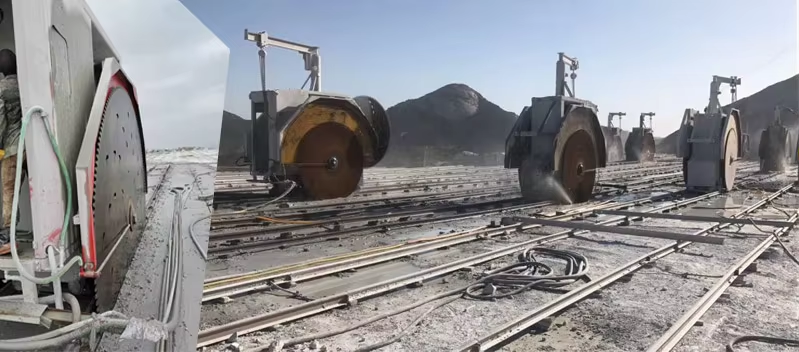

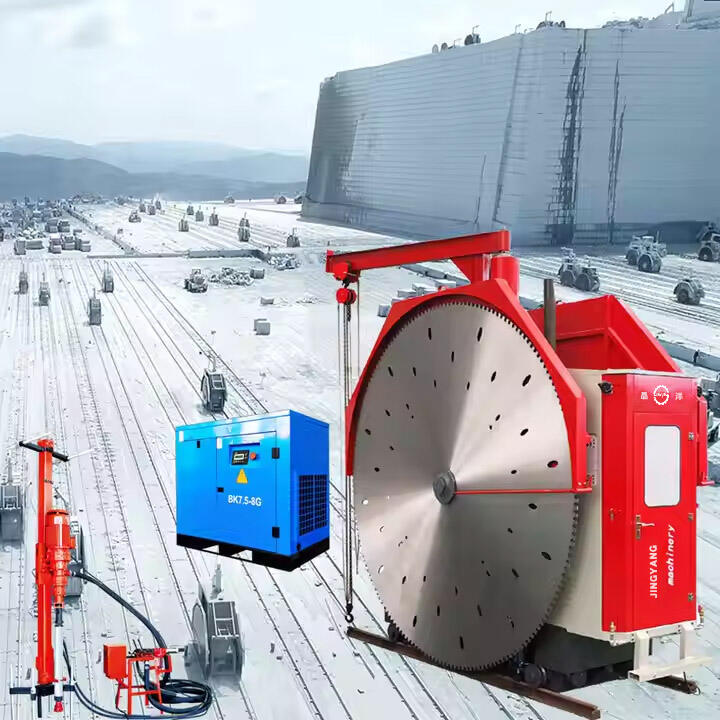

Big Stone Block cutting with diamond Saw Blade: Granite And Marble
*Mono-bloc structure
*Double diamond blade
*High performance Asynchronous motor with permanent magnet, can attain 11000rpm, adjustable speed with frequency converter, for a better cut parameter
*Less prone to Overheating and over-pressurizing
* less noise
*better energy consumption: 10-15% less than 2QYKT
* PLC Siemens Technology Electrical Components,
*Integrated IA
*High dimensions Numerical and Interaction Adaptability,
*Man-Machine interface with a Touch-screen
*High quality Hydraulic System
*Cost-effective: +10% productivity
*easy to transport, to maintain, to install
*output: 15 sq m/h
*Operational Cost: 1USD/sq m

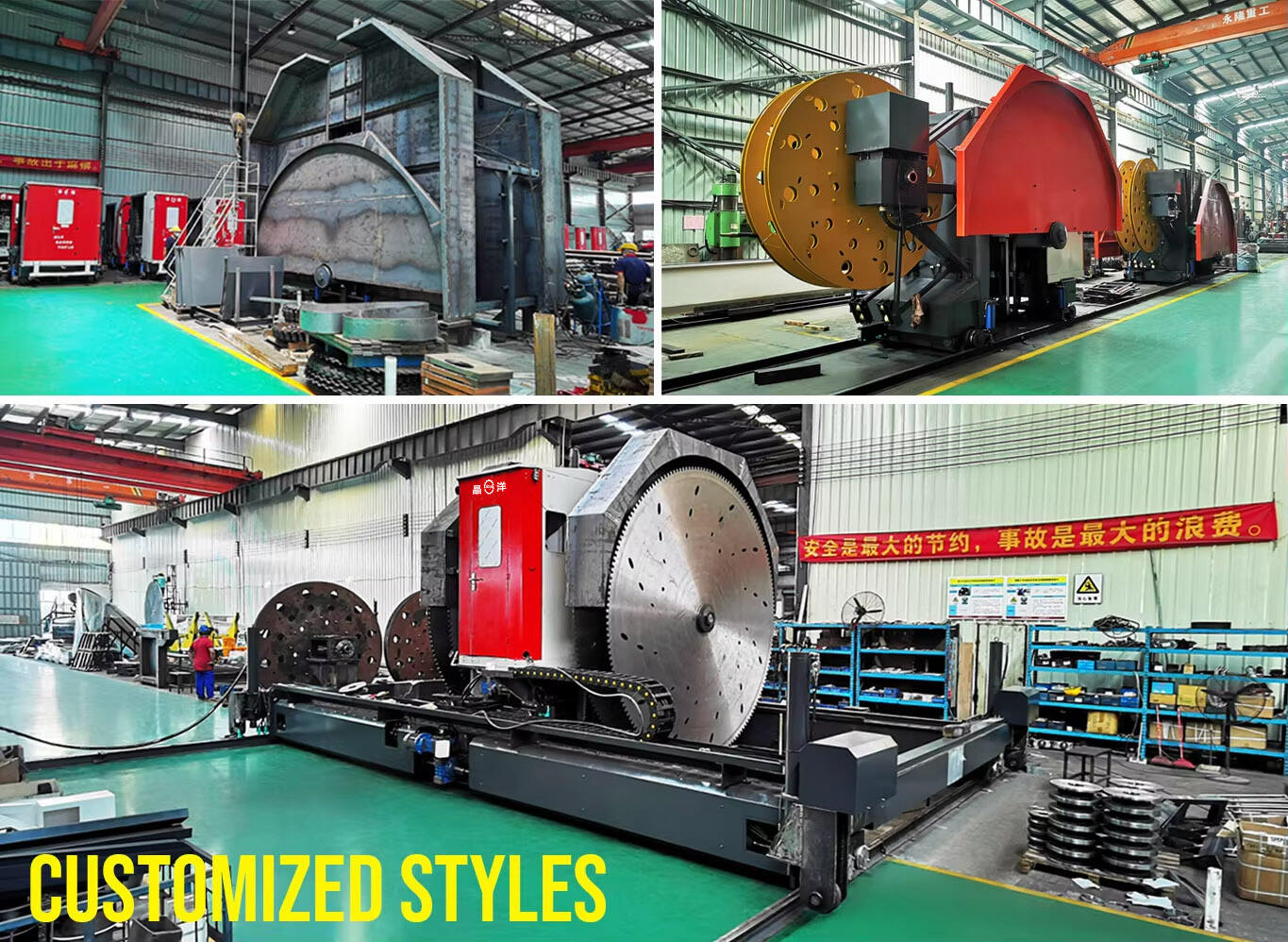

* Can be Customized
Q:What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: Are you trader or manufacture?

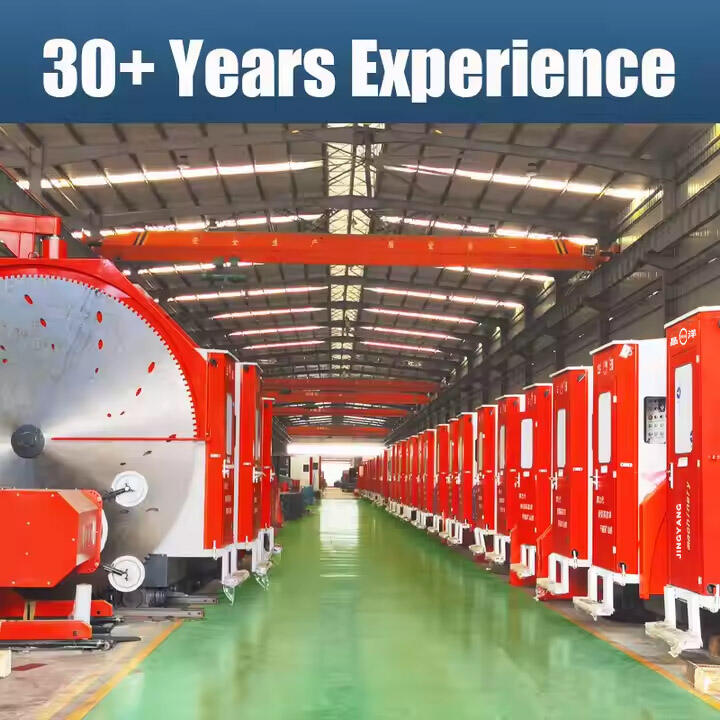

A: We are a leading manufacture in stone machinery for more than 30 years.
Q: What's the warrenty?
A: 1 year, but the technical support is lifetime.
Q: How can you guarantee the quality?
A: We have a professional quality control team, they will seriously inspect every manufacturing procedure during production. Also we will give every machine a overall check before delivery.
Q: Why should I buy your from you, not others?
A: We have professional R&D team in this industry over 30 years, experienced workers, responable QC team, good quality, competitive prices and excellent survice.
