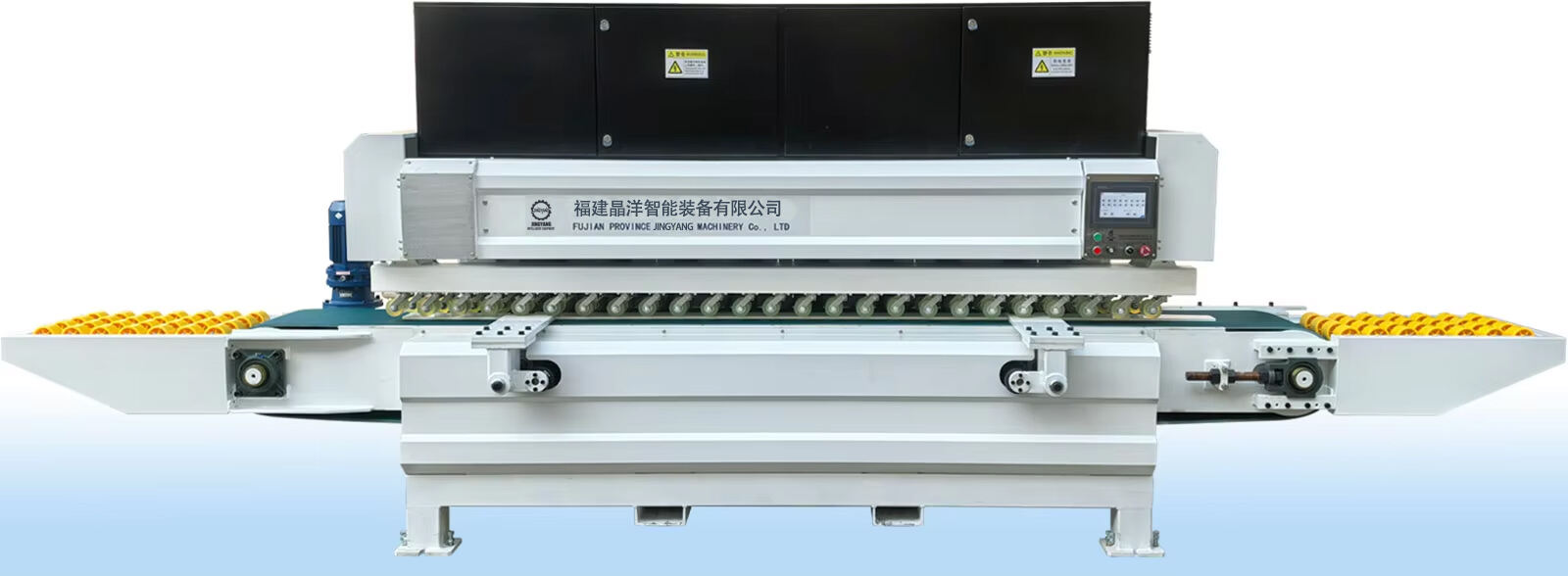

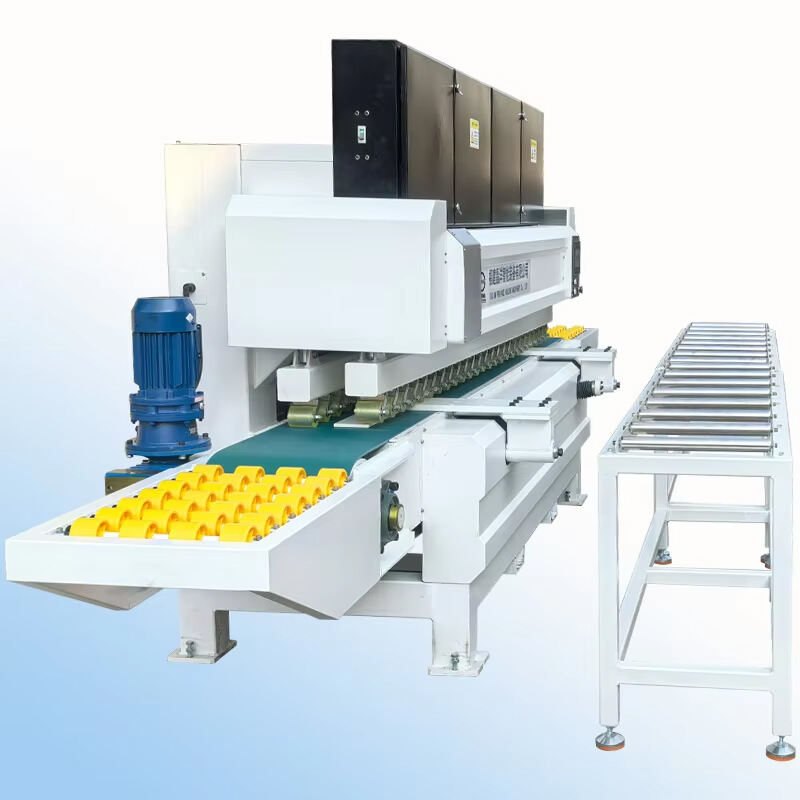

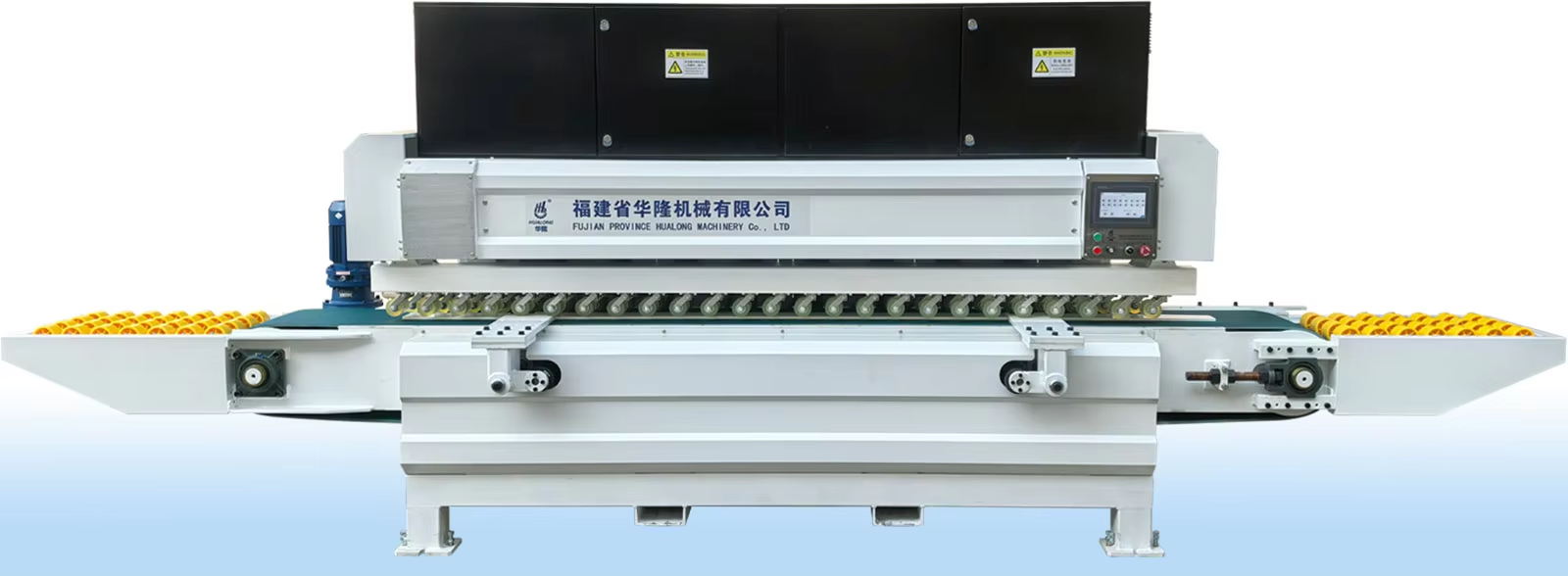

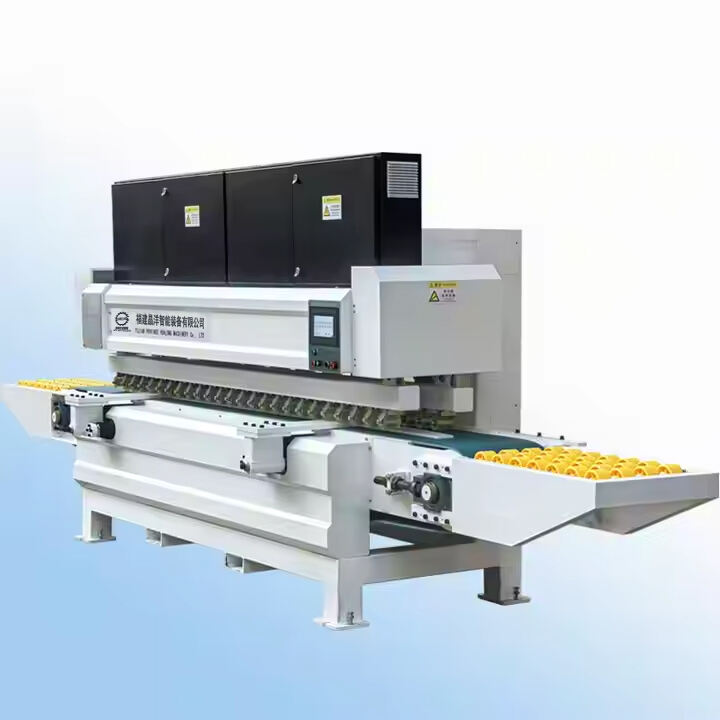

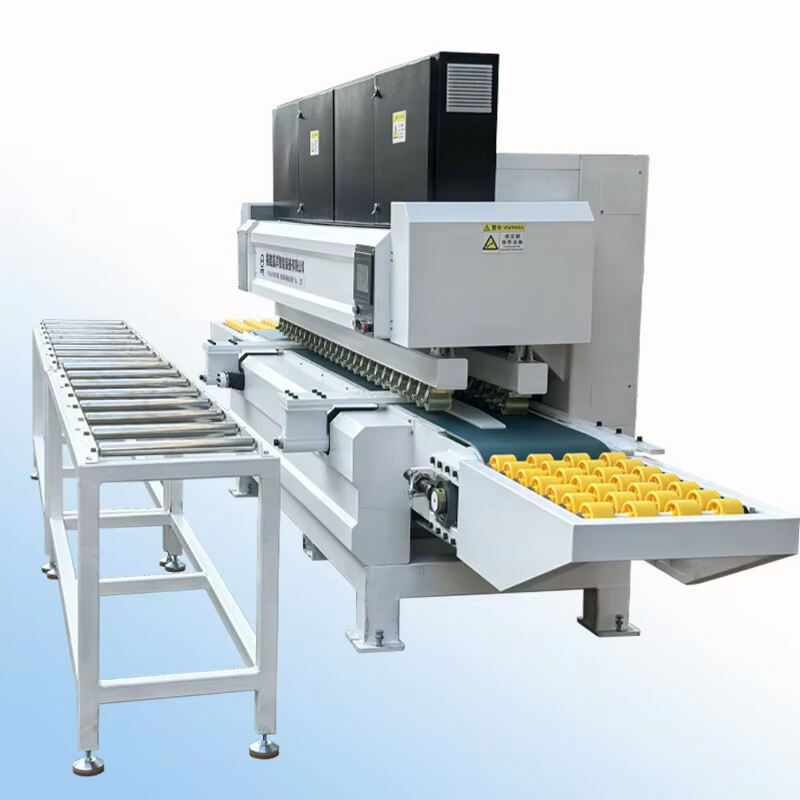

HLCM-8E80 Stone Edge Polishing Machine is an automatic high-throughput system, which is intended for continuous edge grinding and polishing of marble, granite, engineered stone, and ceramics. Built for high-throughput production, this automatic stone edge polisher employs a synchronized multi‑wheel tool carriage that ensures uniform alignment of the wheels and consistency. Fast‑change grinding heads make less downtime when you need to change an abrasive, and an advanced constant‑pressure compensation system guarantees that every edge is evenly bright without any manual intervention.
It is also compatible with commercial market grinding wheels of 30 mm interface, which reduces the cost of consumables and procurement. An integrated hovering‑alarm sensor stops working once stock of material is over, to avoid wheel damage and guarantee operator safety. Capable of complex edge geometries such as chamfers, rounds, ogees, and custom slots, the HLCM-8E80 is a valuable addition to the workshops changing from the conventional single-head routers to automated stone cutting machines.
|
Technical Data for HLCM-8E80 |
||
|
Number of grinding heads |
pc |
8 |
|
Max. processable width |
mm |
2000 |
|
Max. processable thickness |
mm |
80 |
|
Diameter of profile wheel |
mm |
140-180 |
|
Diameter of polishing wheel |
mm |
140-180 |
|
Hole diameter of wheel |
mm |
40 |
|
Power of main motor |
kw |
4 |
|
Processing speed |
m/min |
0.2 - 3 |
|
Water consumption |
L/h |
4 |
|
Gross weight |
kg |
4500 |
|
Dimensions (L x W x H) |
cm |
4300x1200x2100 |
Countertop Edge Finishing: Express polishing of straight, mitered, and chamfered edges of kitchen and bathroom countertops.
Tile & Slab Profiling: High – speed rounding and bevelling of floor and wall tile edges from granite or engineered stone.
Architectural Stone Trim: Manufacturing of decorative molding profiles, baseboards and stair nosings in marble or in limestone.
Commercial Flooring Insets: Slit and shaped cutting and shaping the edges for mosaic inlays and expansion joints.
Monument & Memorial Work: Sleek-edge finish to tombstones, memorial tablets, and granite seats.
Glass & Ceramic Edge Polishing: Flexible for use on hard-fragile materials for perfect and chip-free edges.
High‑Volume Throughput: Round‑the‑clock operation at headhandle – multi‑wheels, Processing speed up to 3 meters per minute.
Uniform Finish: Fully automatic tool-setting maintains all of the grinding wheels running in perfect alignment, providing constant edge quality.
Rapid Abrasive Change‑out: Quick‑release wheel mounts greatly decrease changeover times
Constant Pressure Control: Self‑compensating hydraulic system provides constant polishing force to produce uniform brightness.
Cost‑Effective Consumables: Runs off industry‑standard 30 mm grinding wheels, slashing abrasive inventory costs.
Material‑Sensing Safety: Edge‑hover sensor stops the machine in the absence of a slab, thus saving wheels and spindles.
Flexible Edge Profiles: Can do straight, bevel, round, ogee, and slotted with custom polishing in one pass.
Low Labor Requirement: Full-automated operation prevents the manual clamping and the calibration of wheels.
Robust Construction: Durable frame and industrial‑level components provide you with smooth performance and minimal maintenance.
Q:What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: Are you trader or manufacture?
A: We are a leading manufacture in stone machinery for more than 30 years.
Q: What's the warrenty?
A: 1 year, but the technical support is lifetime.
Q: How can you guarantee the quality?
A: We have a professional quality control team, they will seriously inspect every manufacturing procedure during production. Also we will give every machine a overall check before delivery.
Q: Why should I buy your from you, not others?
A: We have professional R&D team in this industry over 30 years, experienced workers, responable QC team, good quality, competitive prices and excellent survice.
